Drive/Propeller Shaft: Testing and Inspection

Propeller Shaft Inspection

Universal Joint and Boots

1. Raise the vehicle on a lift.

2. Shift the transmission to N.

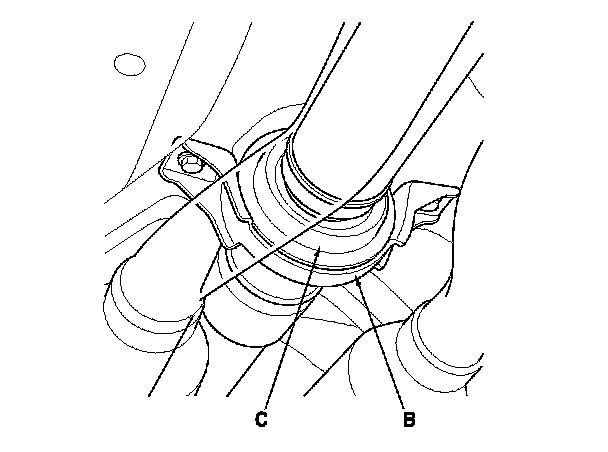

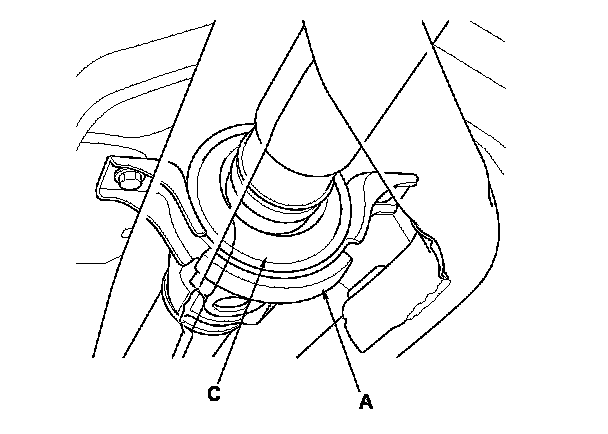

3. Check the No. 1 center support bearing (A) and the No. 2 center support bearing (B) for excessive play or noise. If the center support has excessive play or noise, replace the propeller shaft assembly.

4. Check the rubber portions (C) of the center support bearings for damage and deterioration. If the rubber portions are damaged or deteriorated, replace the propeller shaft assembly.

5. Check the universal joints for excessive play or noise. If the universal joints have excessive play or noise, replace the propeller shaft assembly.

Front side





Rear side





Propeller Shaft Runout

1. Raise the vehicle on a lift.

2. Shift the transmission to N.

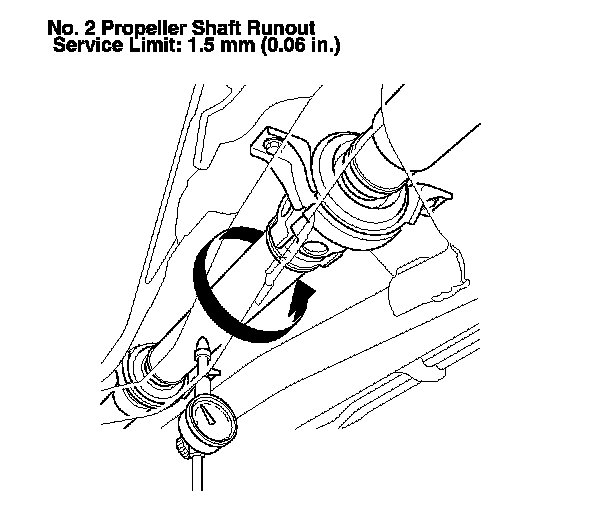

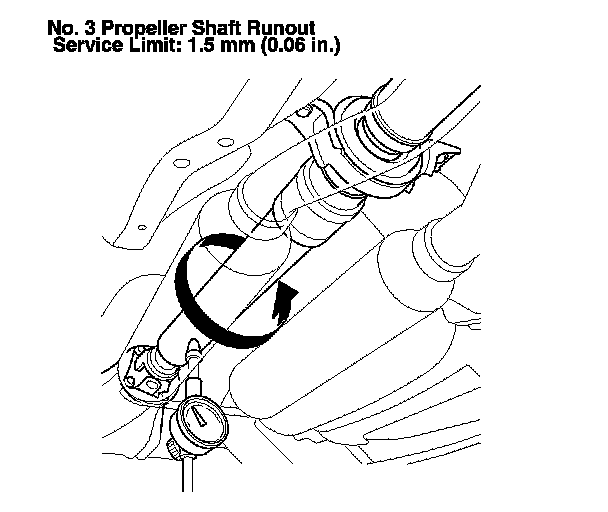

3. Install a dial indicator with its needle on the middle of the No. 1, No. 2, or No. 3 propeller shaft.

4. Turn the other propeller shaft slowly and check the runout. Repeat this procedure for the other propeller shaft.

5. If the runout on either propeller shaft exceeds the service limit, replace the propeller shaft assembly.
