Transmission Housing Intermediary Shaft Bearing Replacement

Transmission Housing Intermediary Shaft Bearing Replacement

Special Tools Required

- Bearing remover shaft 07936-3710600
- Remover handle 07936-3710100
- Sliding hammer weight 07936-371020A
- Driver handle, 15 x 135L 07749-0010000
- Attachment, 37 x 40 mm 07746-0010200

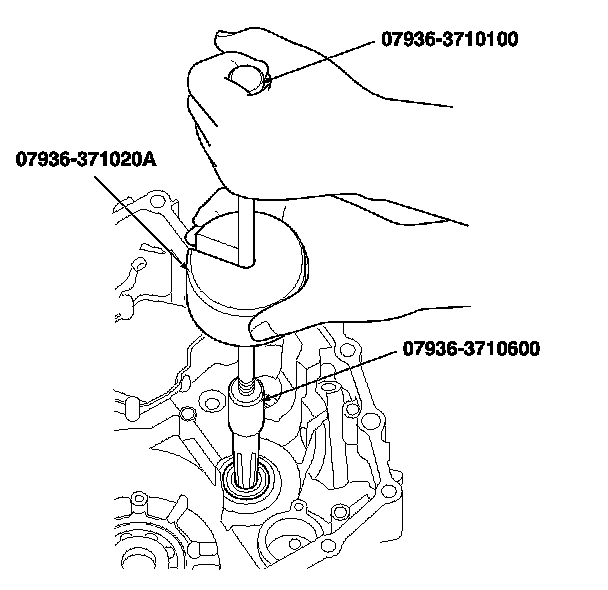

1. Remove the intermediary shaft bearing from the transmission housing using the bearing remover shaft, the remover handle, and the sliding hammer weight.

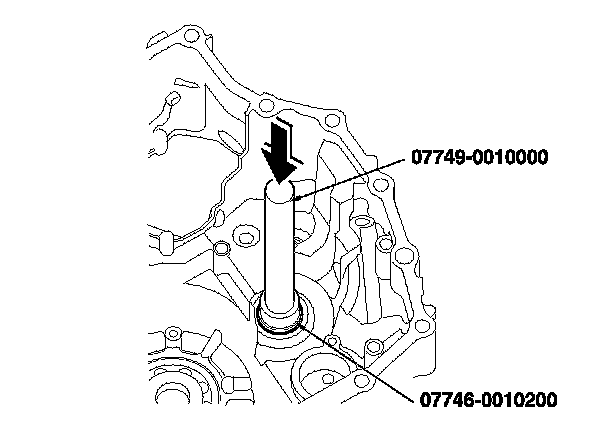

2. Install a new bearing until it bottoms in the transmission housing using the driver handle and the 37 x 40 mm attachment.
