Home
>>
Acura
>>
2009
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>

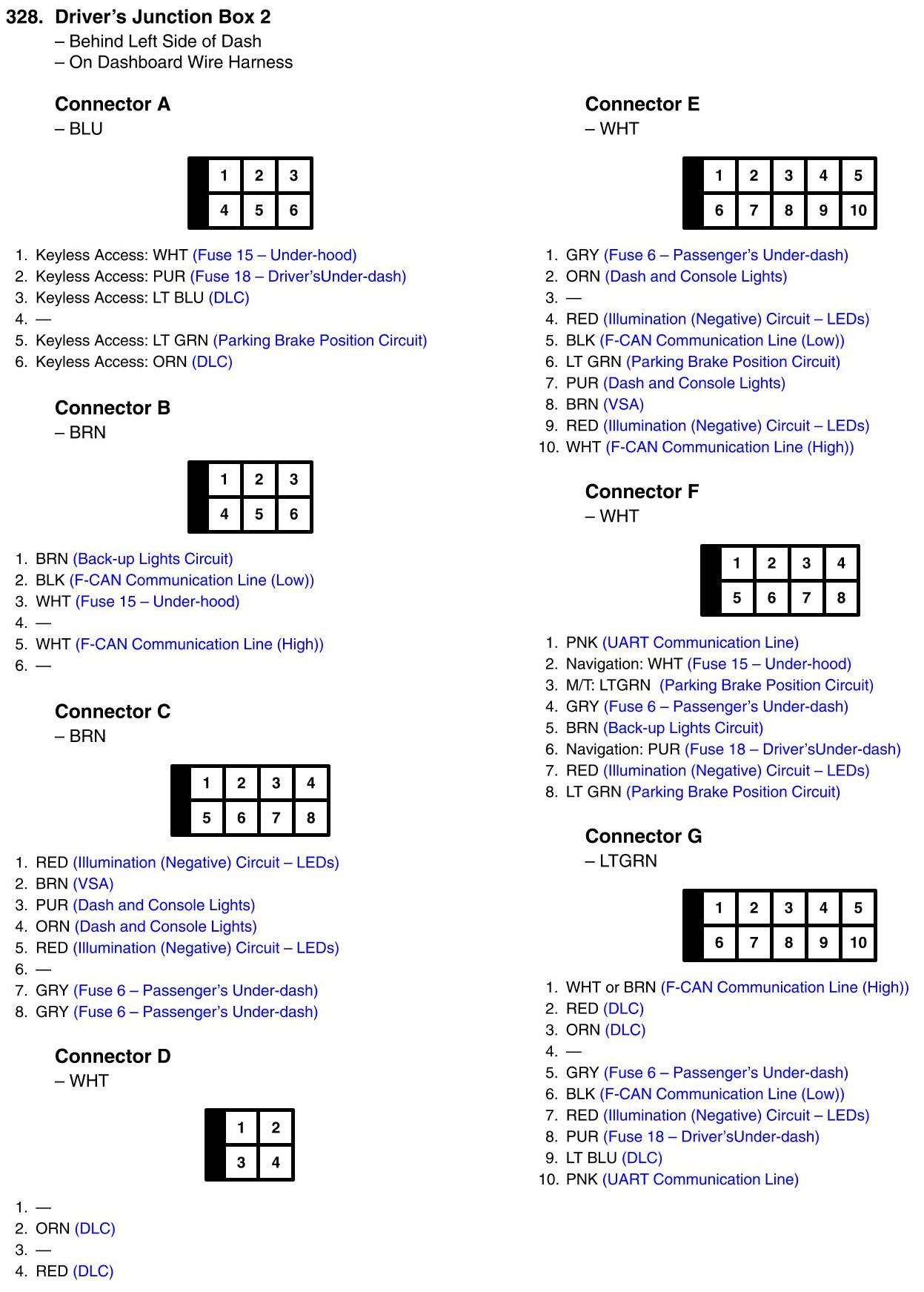

Driver's Junction Box 2 Connector View
Driver's Junction Box 2 Connector View
