Rear Differential Subharnesses Connector and Harness Locations
>>

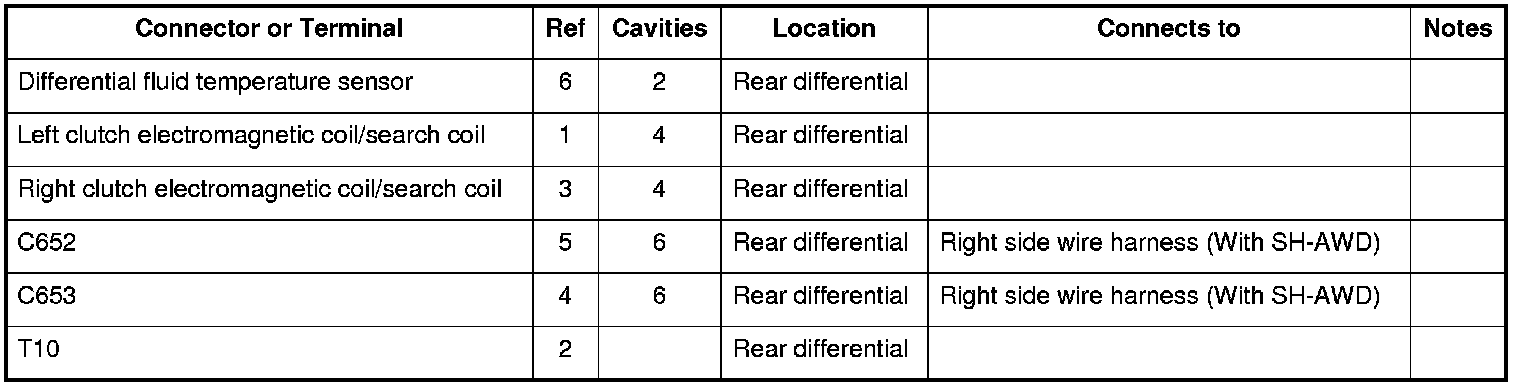

Connector or Terminal
Connector or Terminal
Rear Differential Subharnesses Connector and Harness Locations

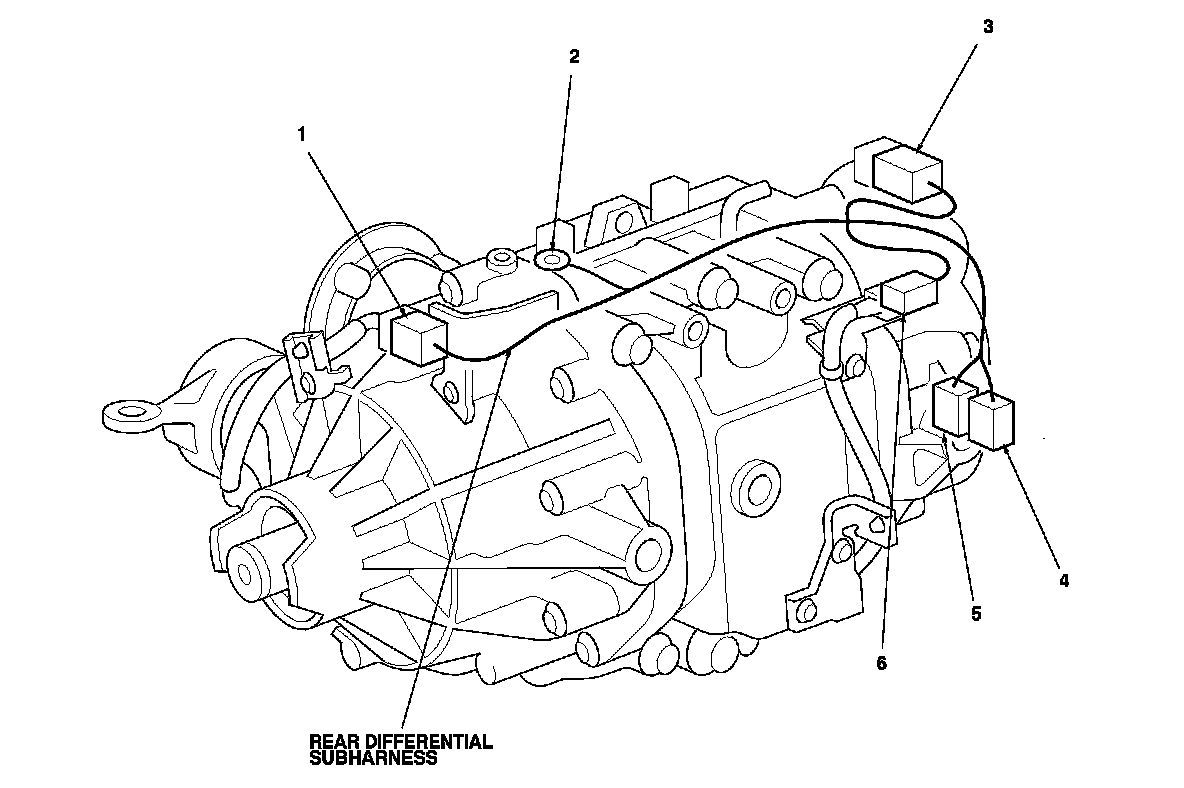

Rear Differential Subharness (With SH-AWD)
