Connector or Terminal

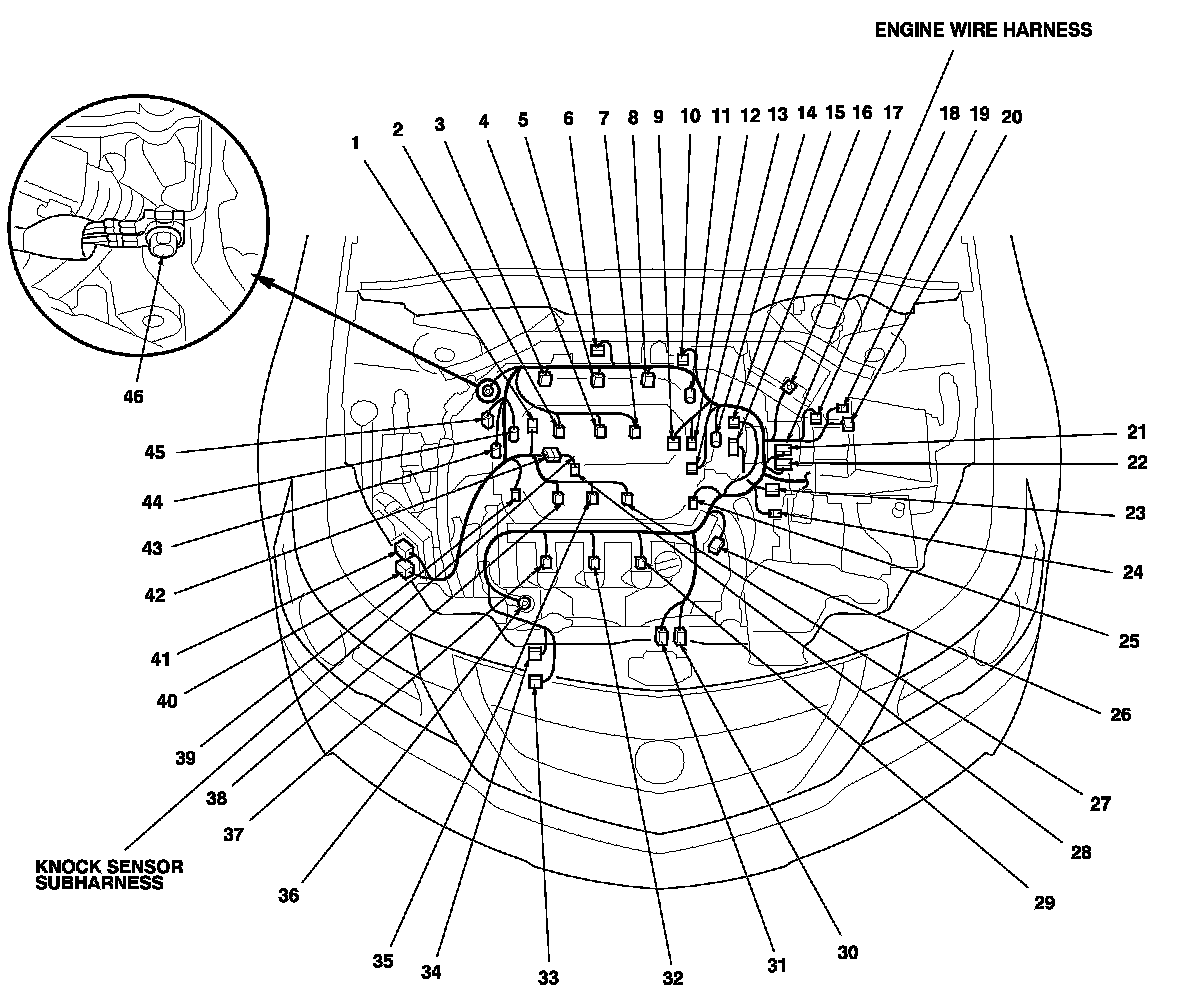

Engine Wire Harness (Engine Section) and Knock Sensor Subharness Connector and Harness Locations

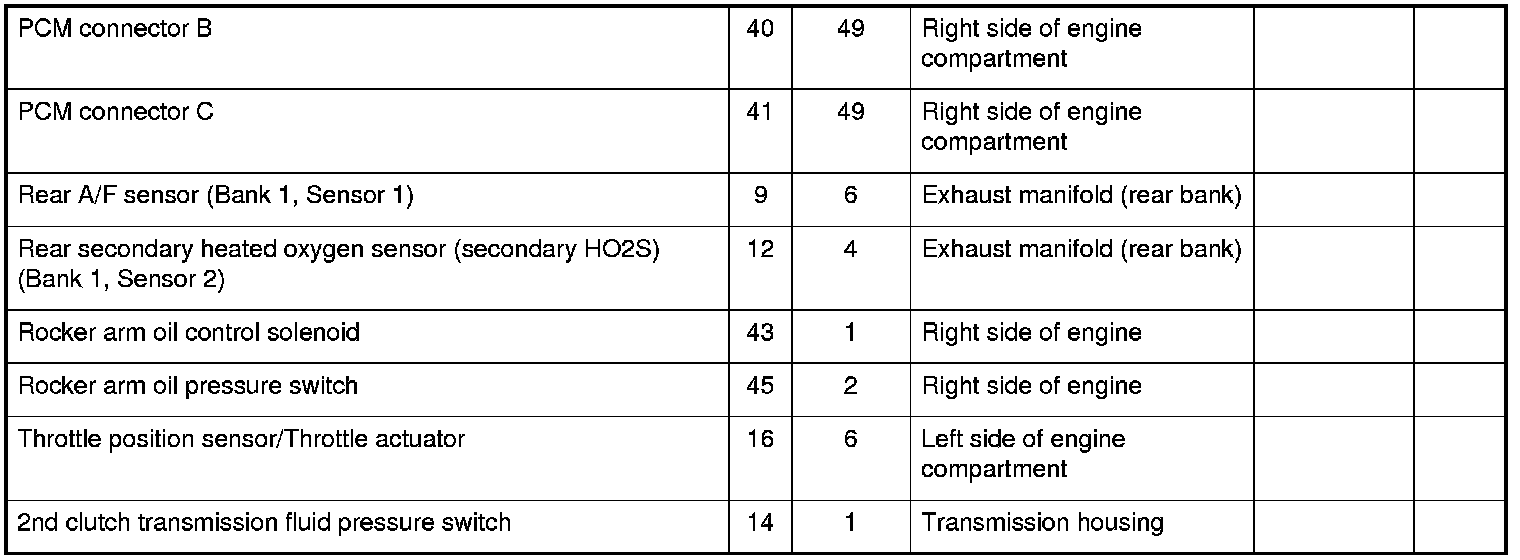

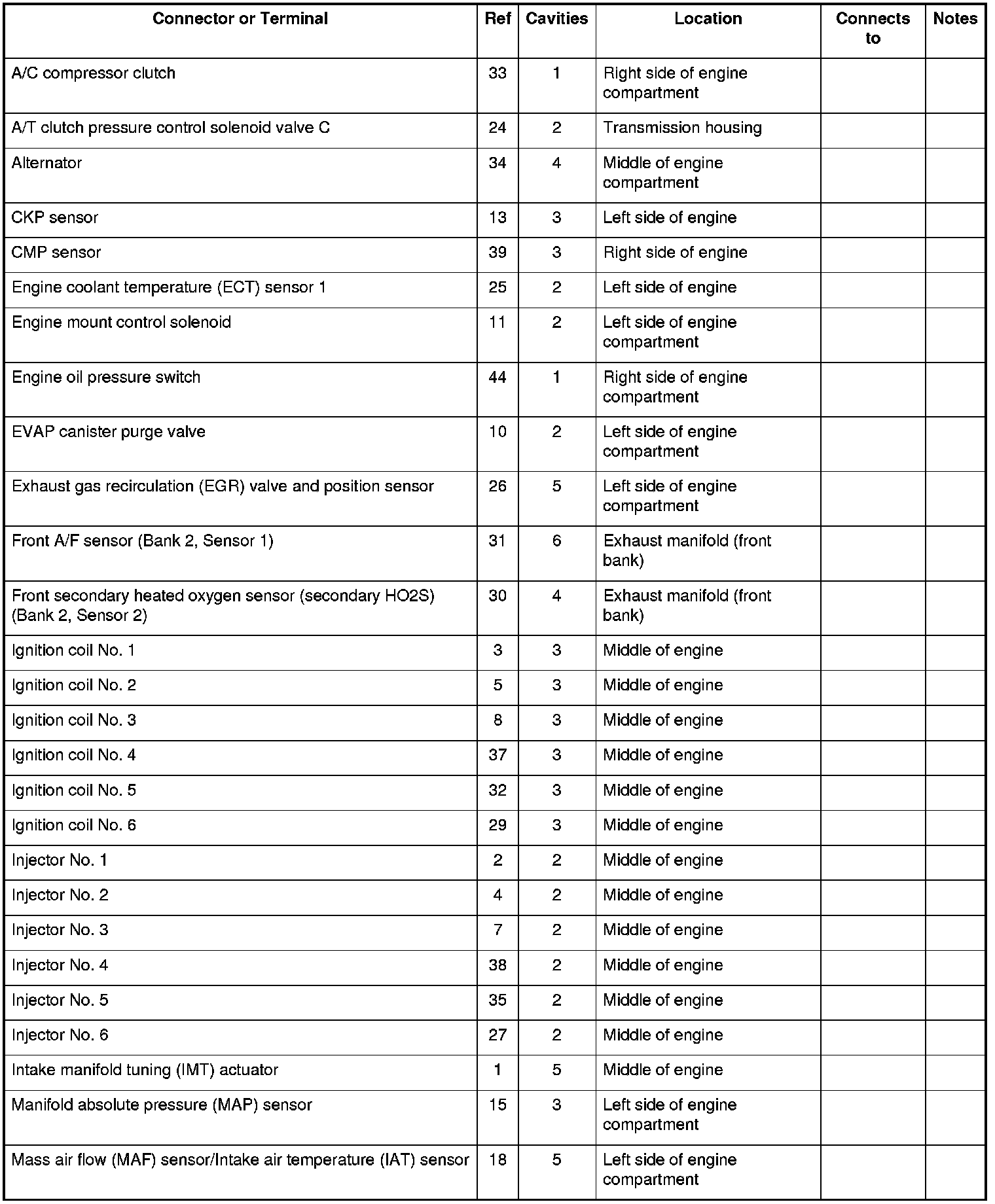

Engine Wire Harness (Engine section)

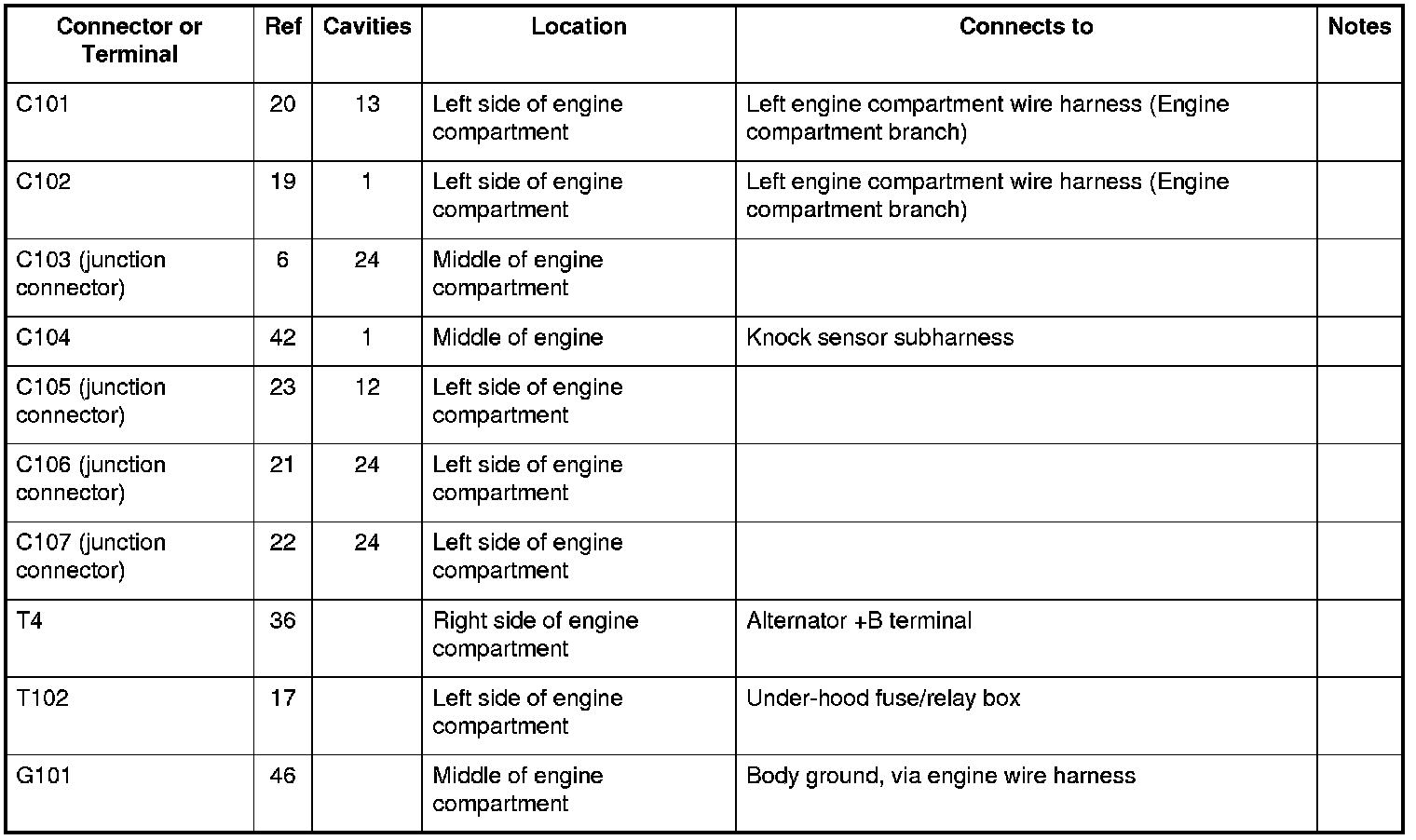

Engine Wire Harness (Engine section)

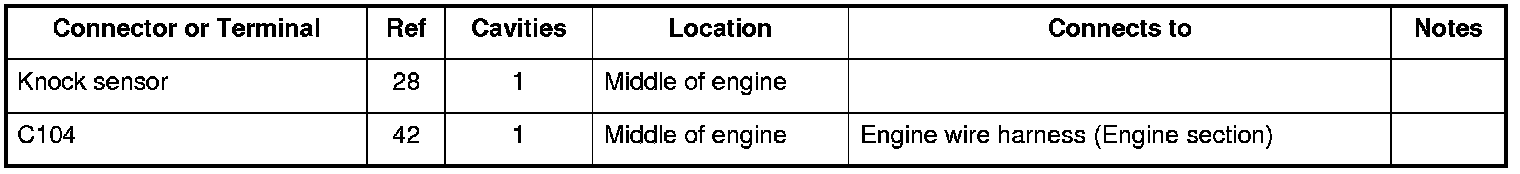

Knock Sensor Subharness
