Audio Wire Harness Connector And Harness Locations
>>
Connector or Terminal
Connector or Terminal

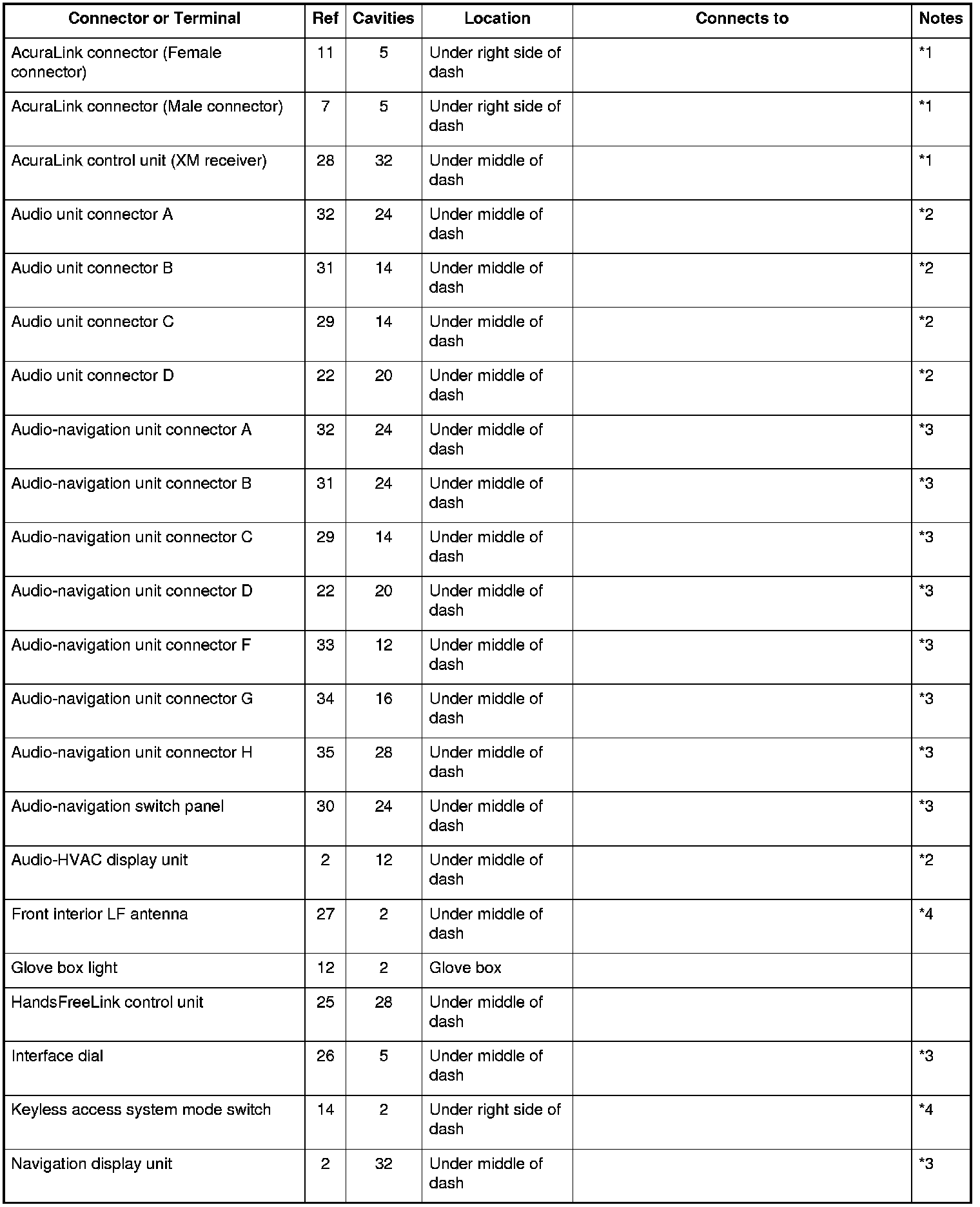

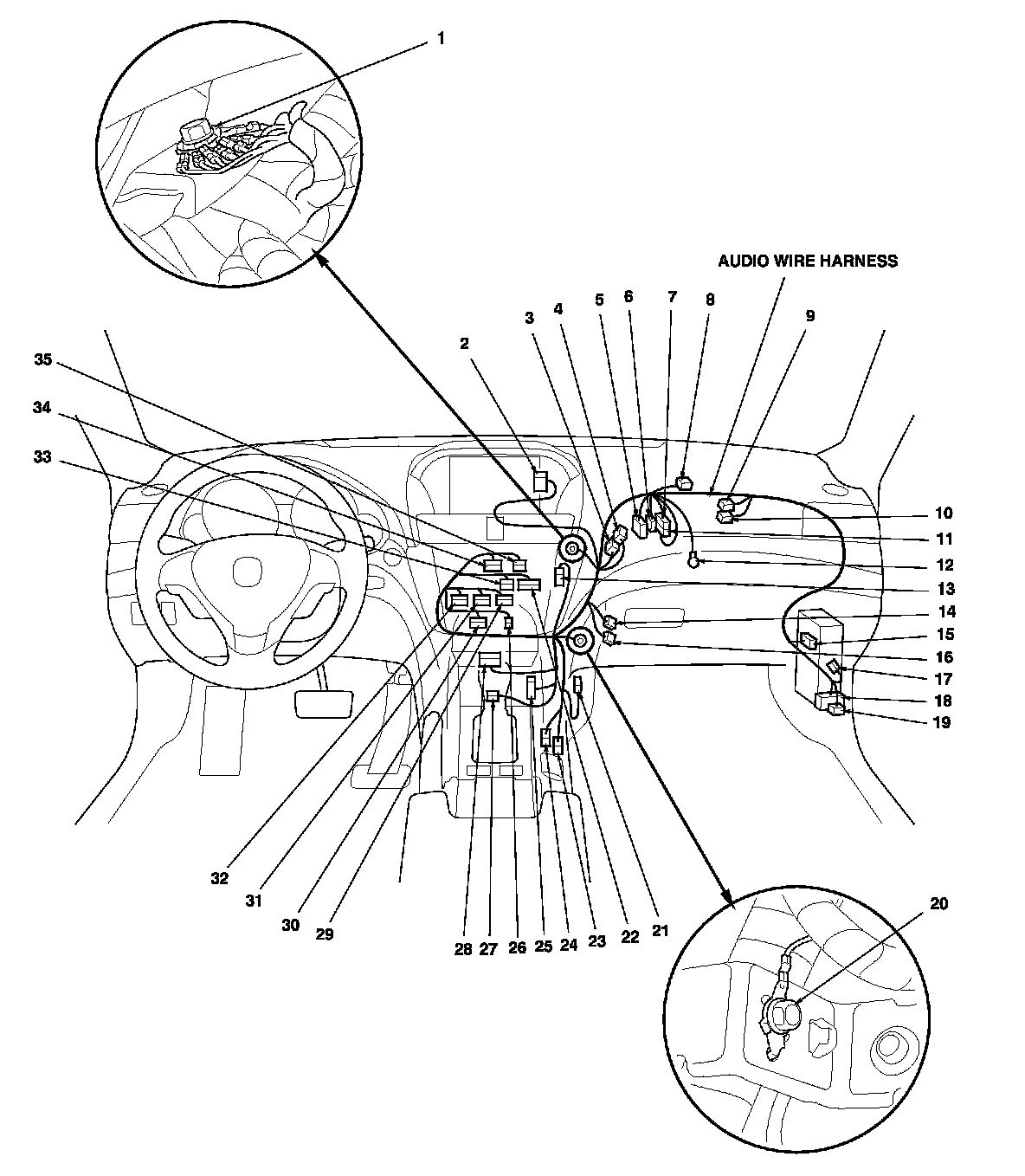

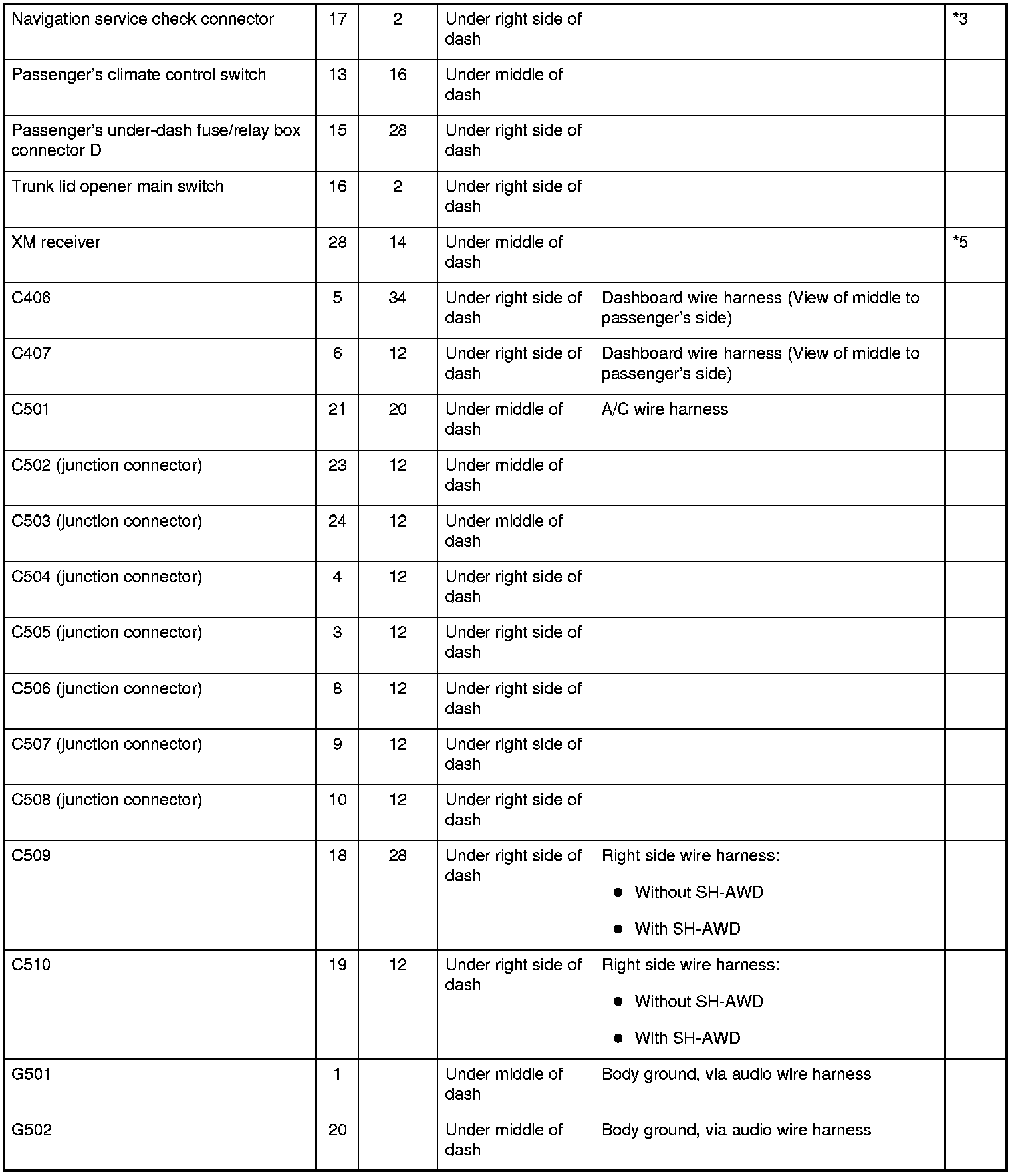

Audio Wire Harness Connector and Harness Locations
Audio Wire Harness
