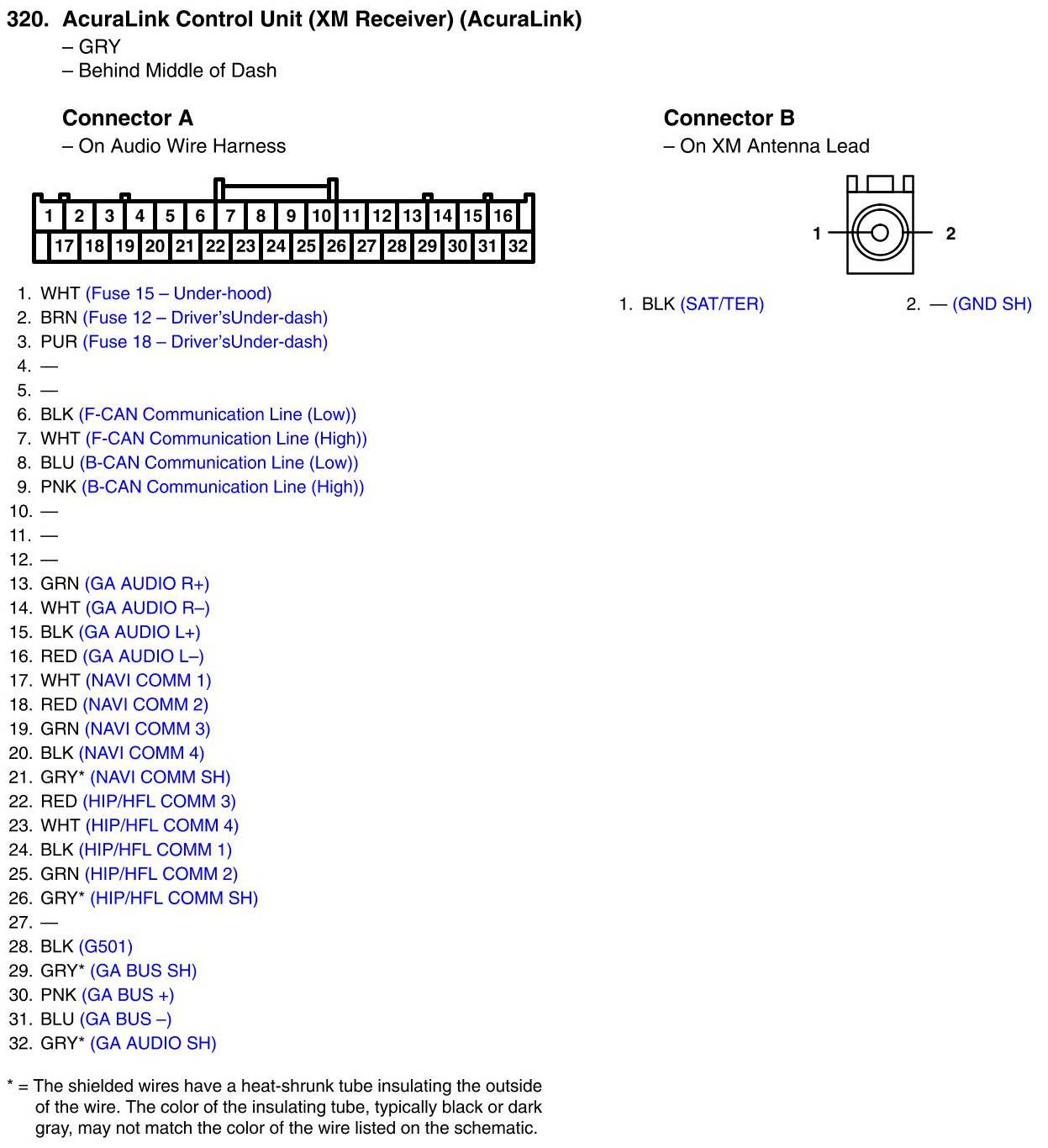

AcuraLink Control Unit (XM Receiver) Connector View
AcuraLink Control Unit (XM Receiver) Connector View
