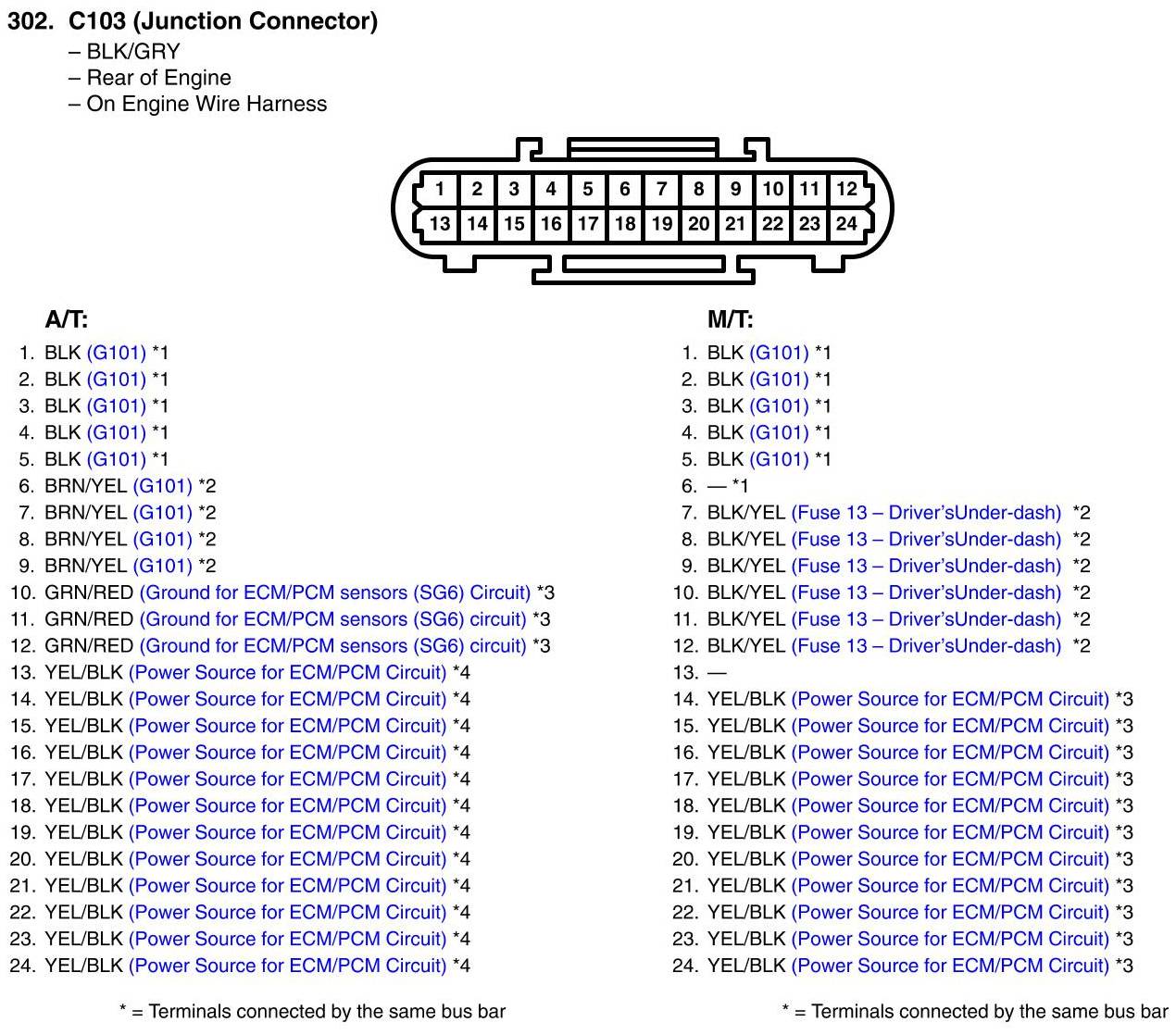

View 302 - C103 (Junction Connector) Connector View
View 302 - C103 (Junction Connector) Connector View
