Acura
>>
2009
>>
TL AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

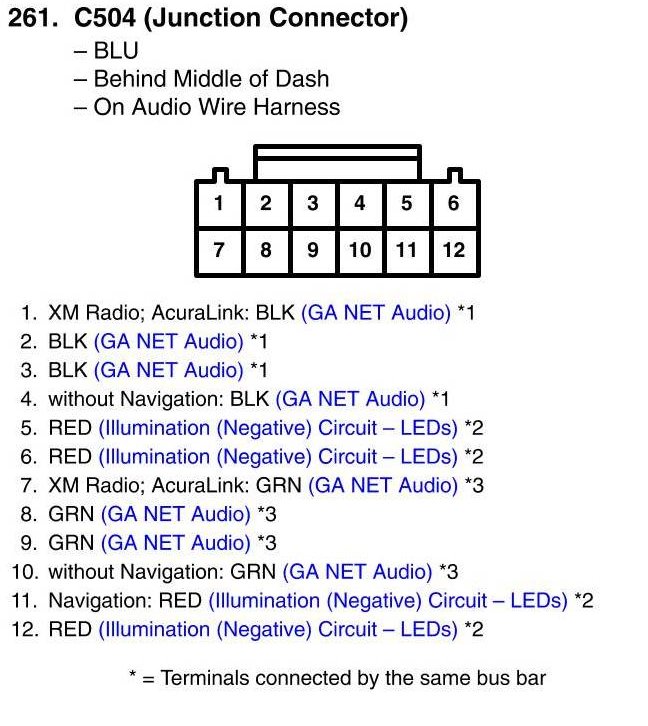

View 261 - C504 (Junction Connector) Connector View
View 261 - C504 (Junction Connector) Connector View
