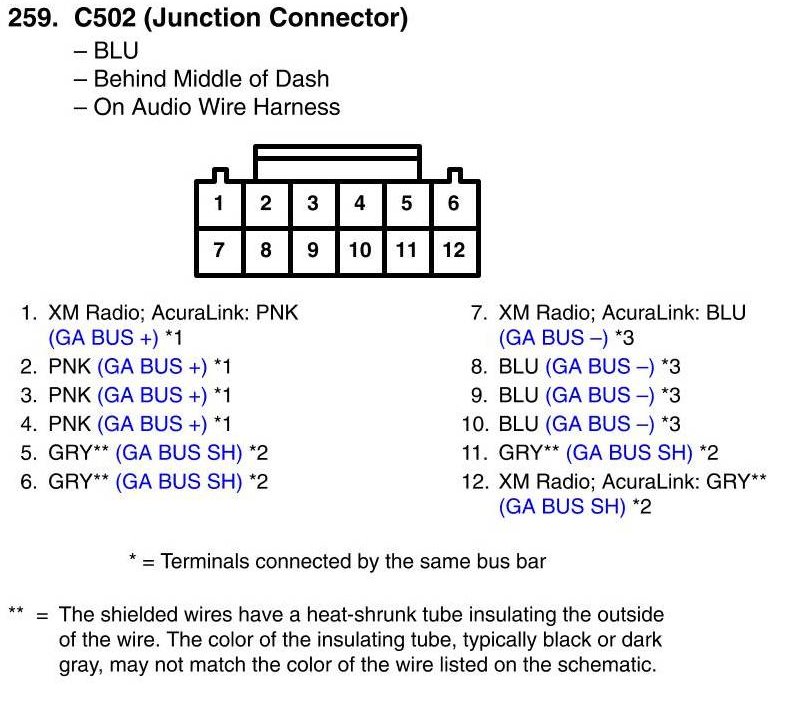

View 259 - C502 (Junction Connector) Connector View
View 259 - C502 (Junction Connector) Connector View
