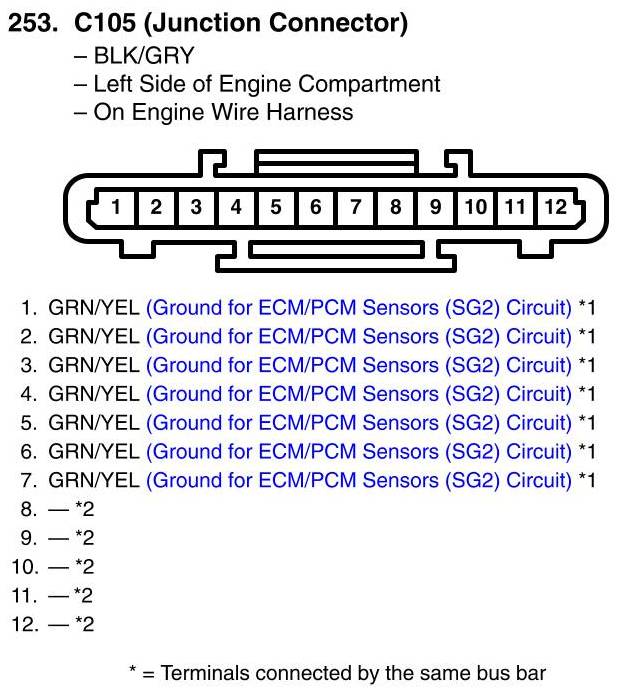

View 253 - C105 (Junction Connector) Connector View
View 253 - C105 (Junction Connector) Connector View
