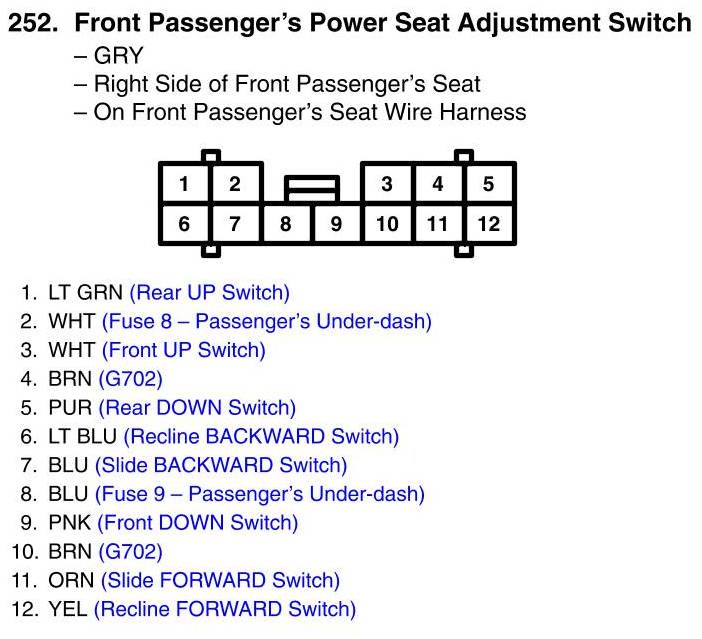

View 252 - Front Passenger's Power Seat Adjustment Switch Connector View
View 252 - Front Passenger's Power Seat Adjustment Switch Connector View
