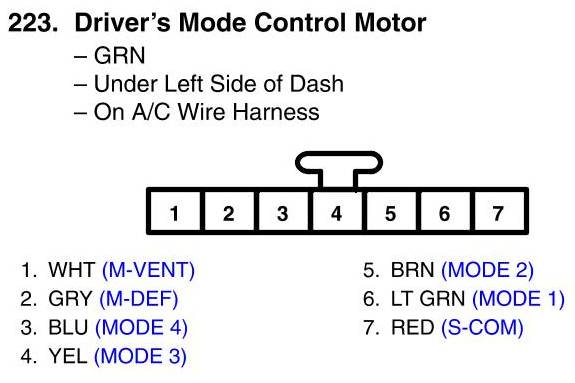

View 223 - Driver's Mode Control Motor Connector View
View 223 - Driver's Mode Control Motor Connector View
