Brake Pedal Assy: Service and Repair

Brake Pedal Replacement

1. Remove the driver's dashboard undercover. Driver's Dashboard Undercover Removal/Installation

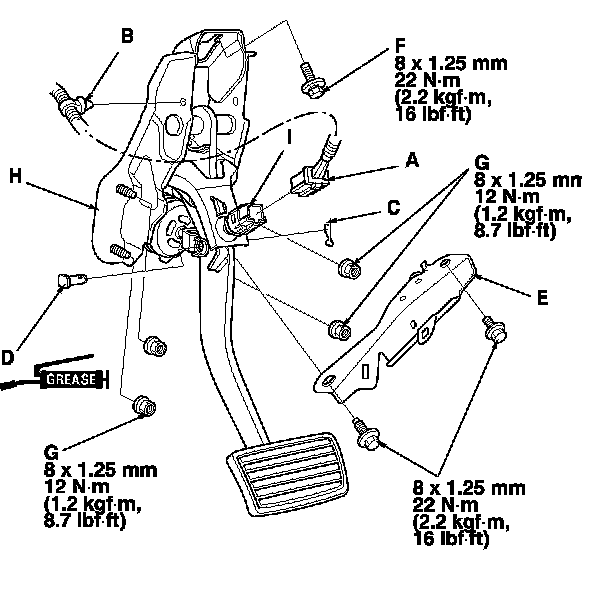

2. Disconnect the brake pedal position switch connector (A), and harness clip (B).

3. Remove the lock pin (C) and the clevis pin (D).

4. Remove the brake pedal support member (E).

5. Remove the brake pedal bracket mounting bolt (F) and the nuts (G).

6. Remove the brake pedal with bracket (H).

7. Remove the brake pedal position switch (I) by turning it counterclockwise.

8. Install the brake pedal in the reverse order of removal.

9. Adjust the brake pedal and the brake pedal position switch. Adjustments
