Transmission Housing Intermediary Shaft Bearing Replacement

Transmission Housing Intermediary Shaft Bearing Replacement

Special Tools Required

- Bearing remover shaft set, 20 mm 07936-3710600
- Bearing remover shaft handle 07936-3710100
- Sliding hammer weight 07741-0010201
- Driver 07749-0010000
- Attachment, 37 x 40 mm 07746-0010200

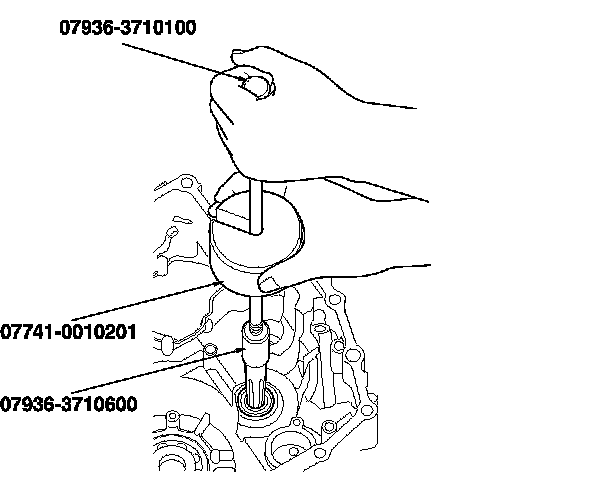

1. Remove the intermediary shaft bearing from the transmission housing using the bearing remover shaft set (20 mm), the bearing shaft handle, and the sliding hammer weight.

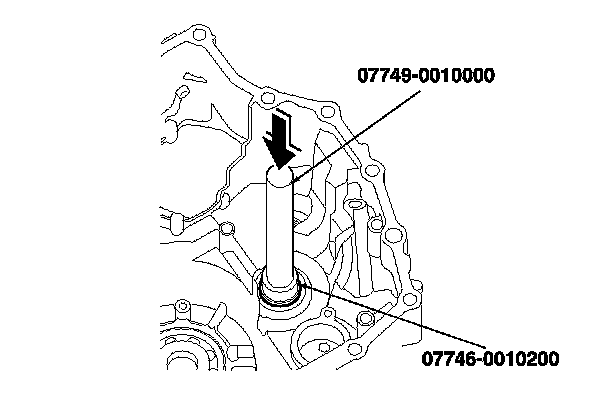

2. Install the new bearing until it bottoms in the transmission housing using the driver and the attachment (37 x 40 mm).
