Fluid Line/Hose: Service and Repair

ATF Cooler Hose Replacement

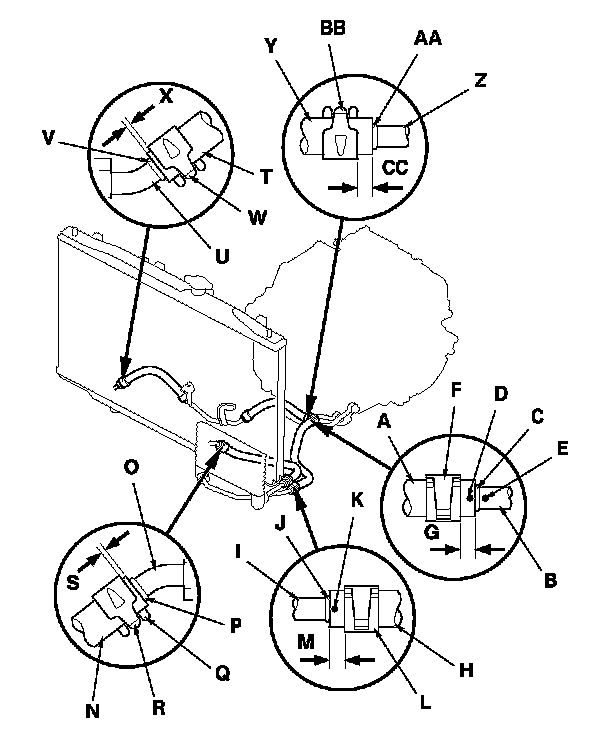

1. Slide the ATF cooler outlet hose (A) over the ATF cooler line (B) until the hose end contacts with the bulge (C) of the ATF cooler line. Align the dot (D) on the hose end with the dot (E) on the cooler line, and secure the hose with the clip (F) at 6-8 mm (0.2-0.3 in.) (G) from the hose end.

2. Slide the ATF cooler outlet hose (H) over the ATF cooler line (I) until the hose end contacts with the bulge (J) of the ATF cooler line. Face down the dot (K) on the hose end, and secure the hose with the clip (L) at 6-8 mm (0.2-0.3 in.) (M) from the hose end.

3. Slide the ATF cooler hose (N) over the ATF cooler line (O) until the hose end contacts with the bulge (P) of the ATF cooler line. Face down the dot (Q) on the hose end, and secure the hose with the clip (R) at 2-4 mm (0.1-0.2 in.) (S) from the hose end.

4. Slide the ATF cooler hose (T) over the ATF cooler line (U) until the hose end contacts with the bulge (V), and secure the hose with the clip (W) at 2-4 mm (0.1-0.2 in.) (X) from the hose end.

5. Slide the ATF cooler inlet hose (Y) over the ATF cooler line (Z) until the hose end contacts with the bulge (AA) of the ATF cooler line, and secure the hose with the clip (BB) at 6-8 mm (0.2-0.3 in.) (CC) from the hose end.
