Telescoping Wheel Motor: Testing and Inspection

Power Tilt/Telescopic Steering Motor Test

1. Remove the driver's dashboard undercover, Driver's Dashboard Undercover Removal/Installation and the driver's dashboard lower cover, Driver's Dashboard Lower Cover Removal/Installation then remove the steering column covers. Steering Column Removal and Installation

2. Disconnect the 6P connector and 8P connector from the power tilt/telescopic steering motors.






3. Check each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

4. If the motor does not run or fails to run smoothly; replace the steering column assembly. Steering Column Removal and Installation

Tilt motor

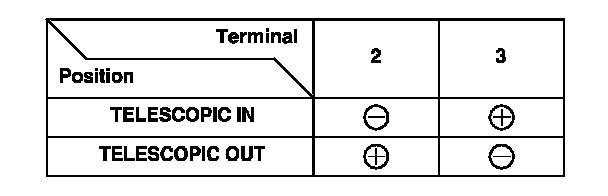

Telescopic motor
