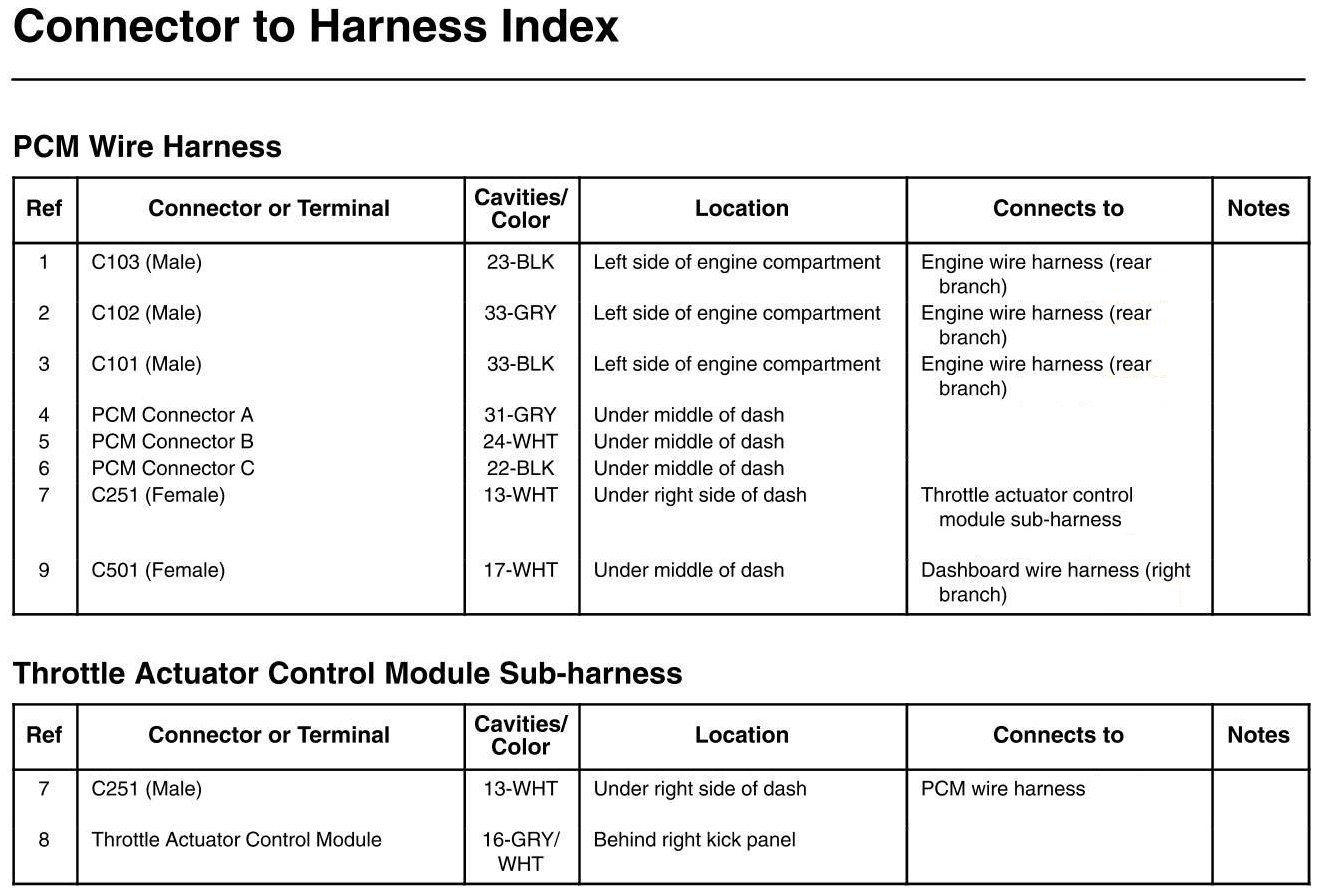

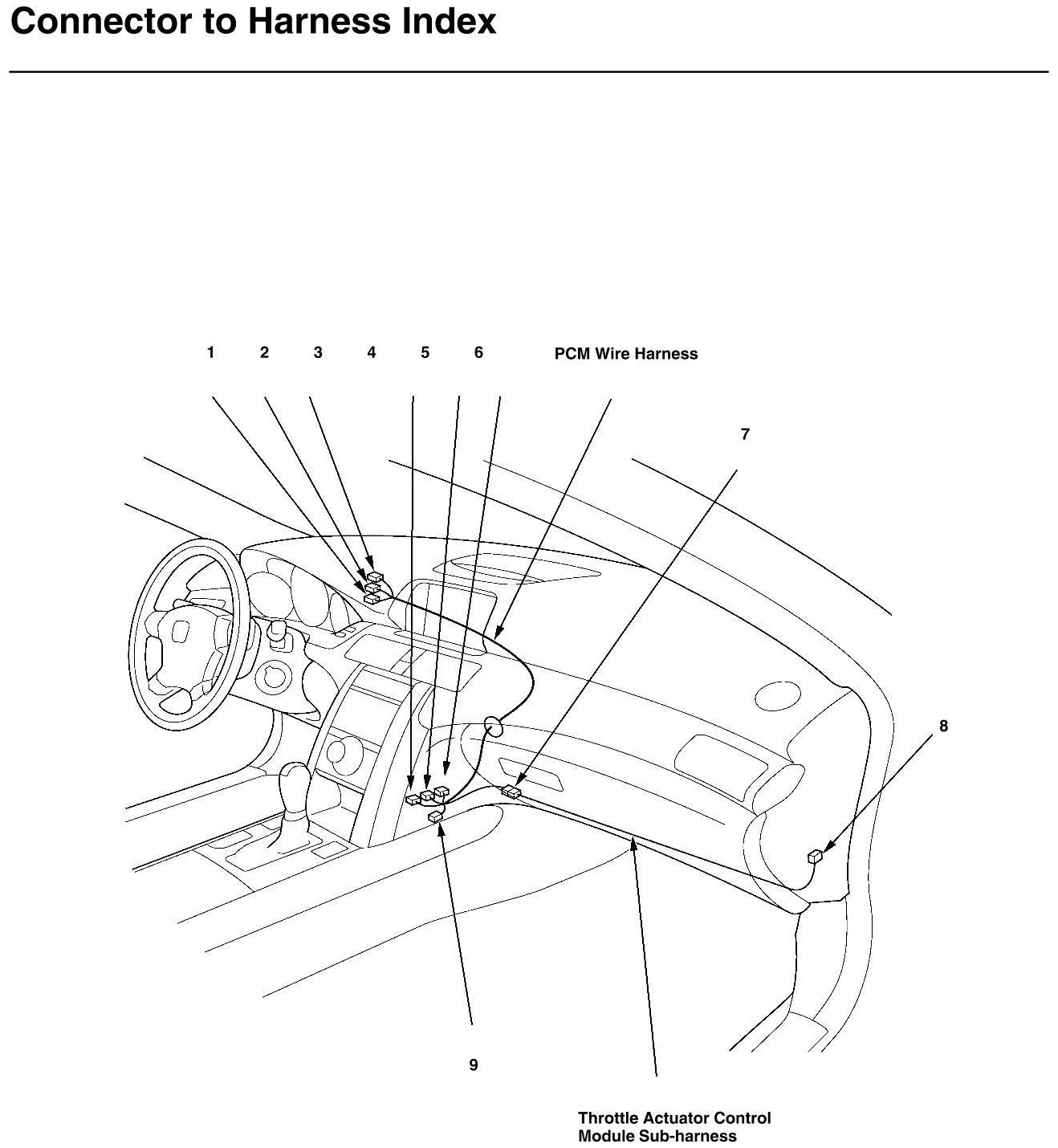

PCM Wire Harness and Throttle Actuator Control Module Subharness Connector and Harness Locations
PCM Wire Harness and Throttle Actuator Control Module Subharness Connector and Harness Locations
