Power Trunk / Liftgate Lock Switch
>>

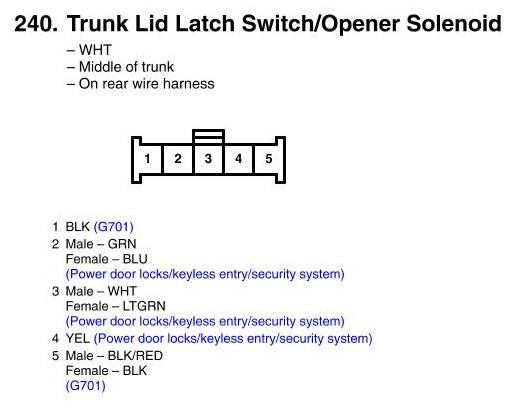

Trunk Lid Latch Switch/Opener Solenoid Connector View
Trunk Lid Latch Switch/Opener Solenoid Connector View
