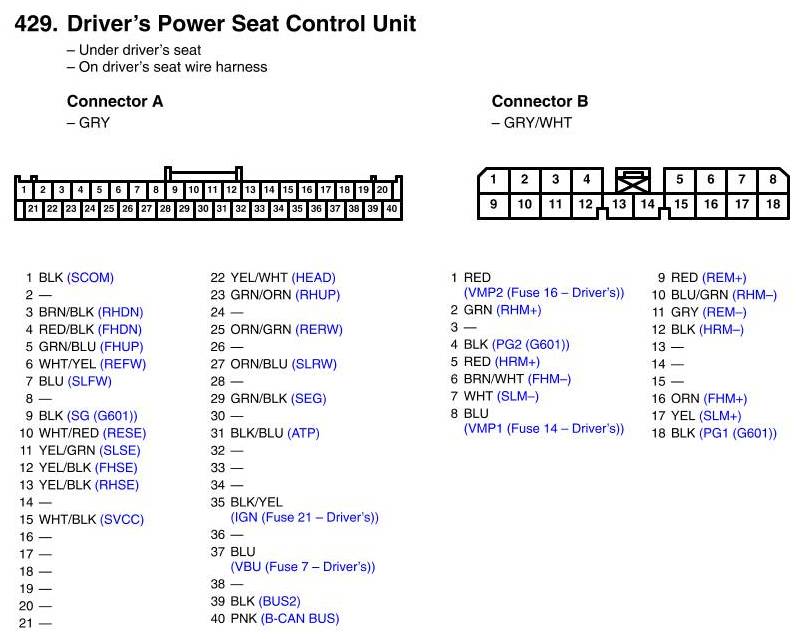

View 429 - Driver's Power Seat Control Unit Connector View
View 429 - Driver's Power Seat Control Unit Connector View
