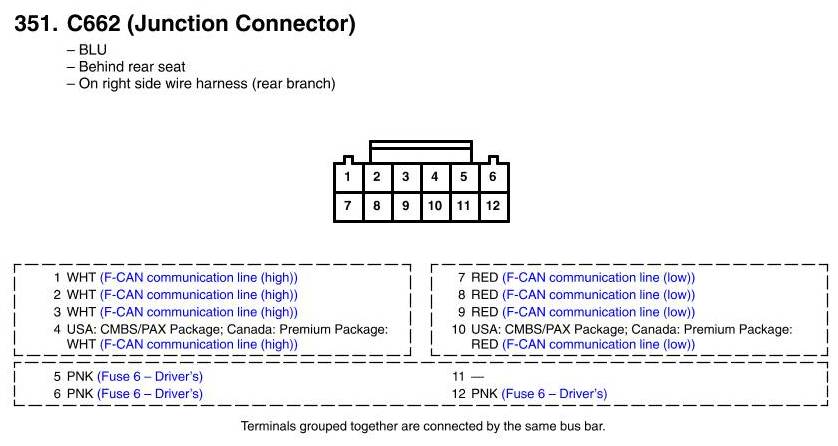

View 351 - C662 (Junction Connector) Connector View
View 351 - C662 (Junction Connector) Connector View
