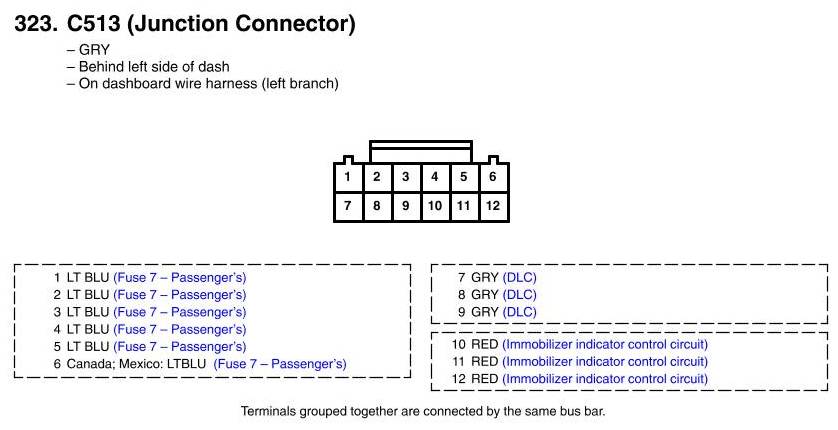

View 323 - C513 (Junction Connector) Connector View
View 323 - C513 (Junction Connector) Connector View
