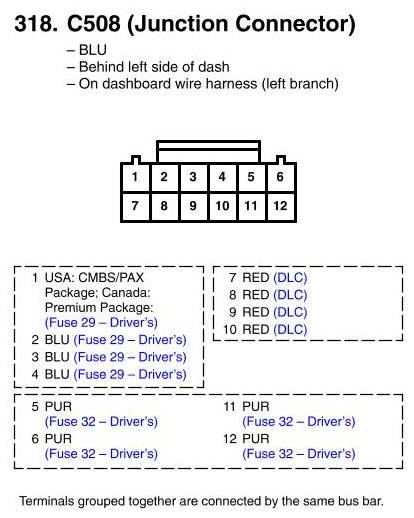

View 318 - C508 (Junction Connector) Connector View
View 318 - C508 (Junction Connector) Connector View
