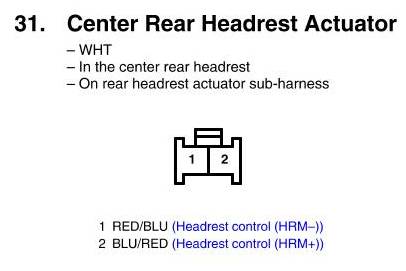

View 31 - Center Rear Headrest Actuator Connector View
View 31 - Center Rear Headrest Actuator Connector View
