Home
>>
Acura
>>
2009
>>
RL V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

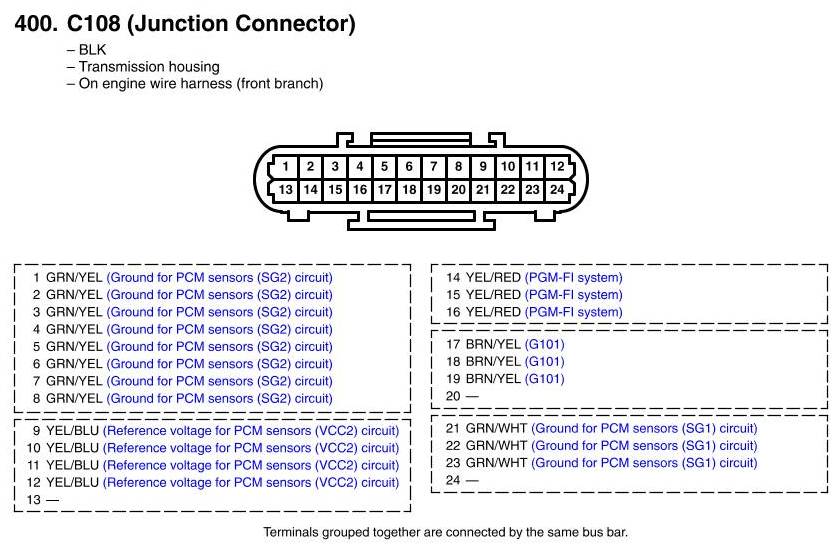

C108 (Junction Connector) Connector View
C108 (Junction Connector) Connector View
