Traction Control Switch: Testing and Inspection

VSA OFF Switch Test

1. Remove the instrument fascia. Instrument Fascia Removal/Installation

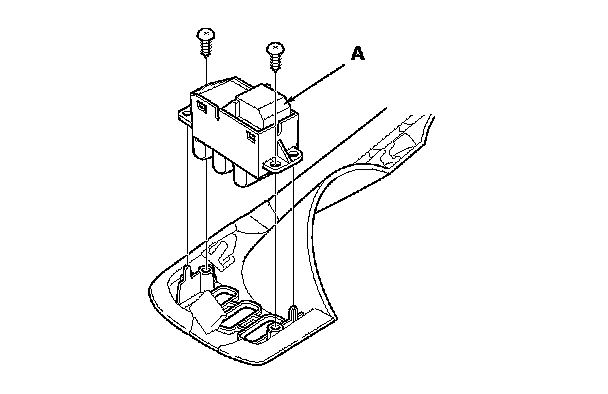

2. Remove the VSA OFF switch (A) from the switch panel.

3. Disconnect the VSA OFF switch 6P connector.






4. Check for continuity between the VSA OFF switch 6P connector terminals No. 4 and No. 6. There should be continuity when the switch is pressed, and no continuity when the switch is released.
