Home >> Acura >> 2009 >> RL V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Diagrams >> Front Passenger's Seat Ventilation Control Unit Connector View (USA: Technology Package, CMBS/PAX Package)

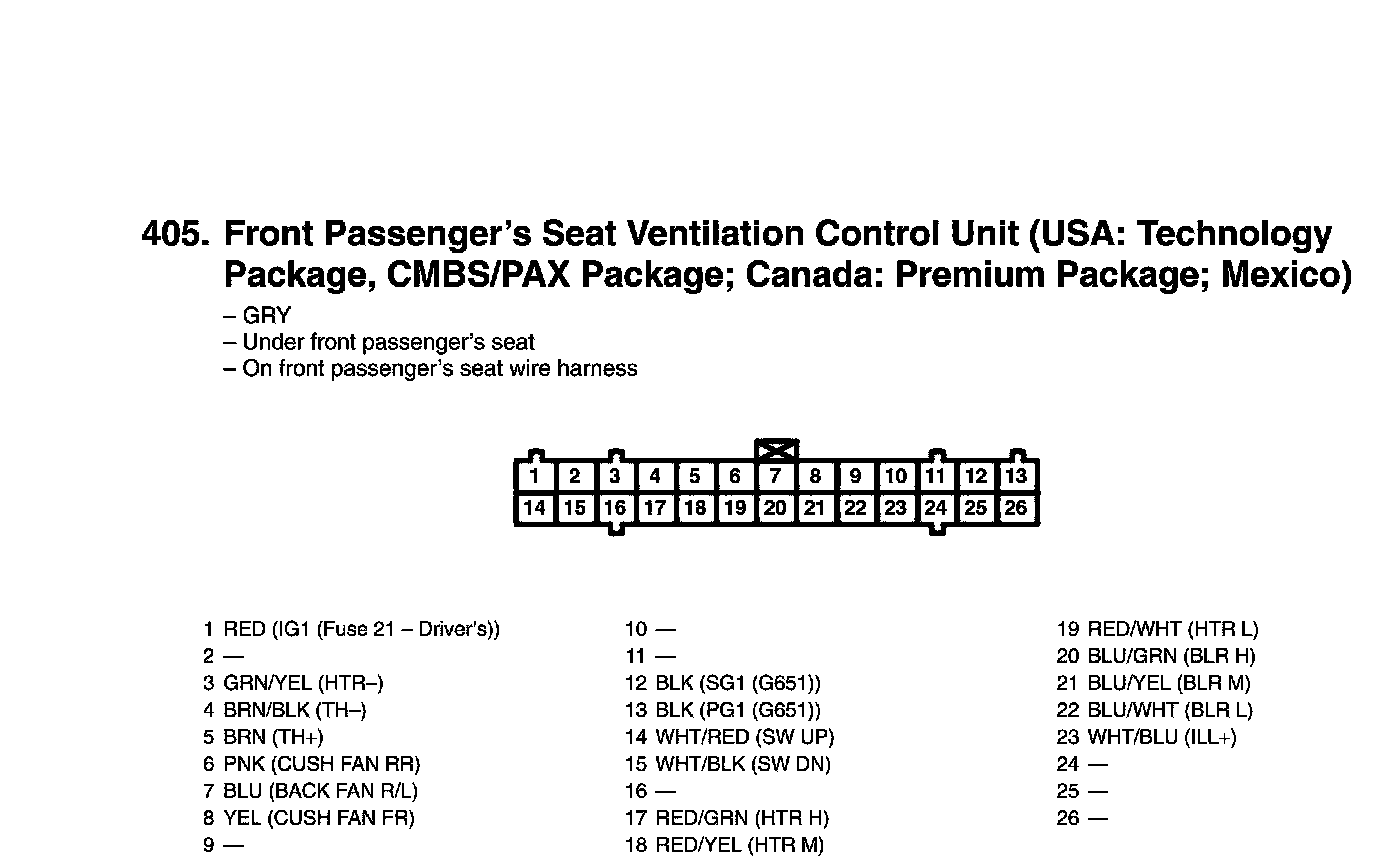

Front Passenger's Seat Ventilation Control Unit Connector View (USA: Technology Package, CMBS/PAX Package)
