Glove Box Damper Replacement

Glove Box Damper Replacement

NOTE: Take care not to scratch the glove box.

1. Remove the glove box. Glove Box Removal/Installation

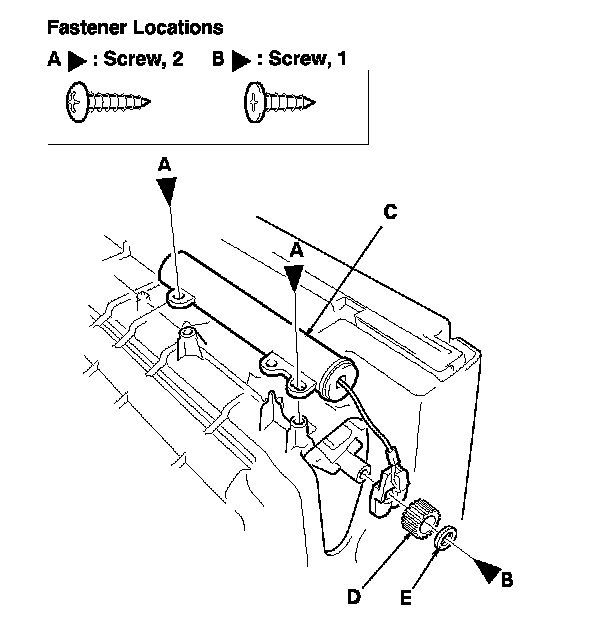

2. Remove the screws (A, B), then remove the glove box damper (C), the stopper rubber (D), and the washer (E).

3. Install the damper in the reverse order of removal.
