Side Undercarriage Cover Replacement

Side Undercarriage Cover Replacement

Special Tools Required

- Push pin puller 07AAC-SJAA100

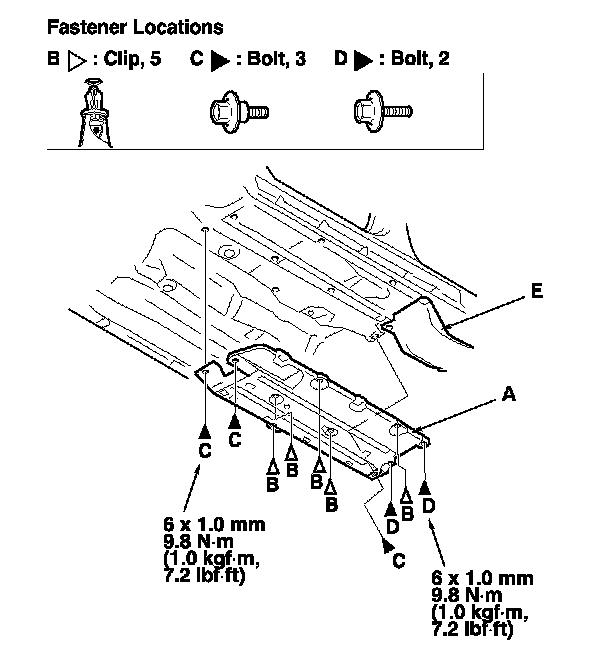

1. Remove the side undercarriage covers (A).
-1 Remove the clips (B) and the bolts (C).
-2 Remove the bolts (D) securing the side undercarriage cover and the fuel tank cover (E).

2. Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
