Rear Undercarriage Cover Replacement

Rear Undercarriage Cover Replacement

Special Tools Required

- Push pin puller 07AAC-SJAA100

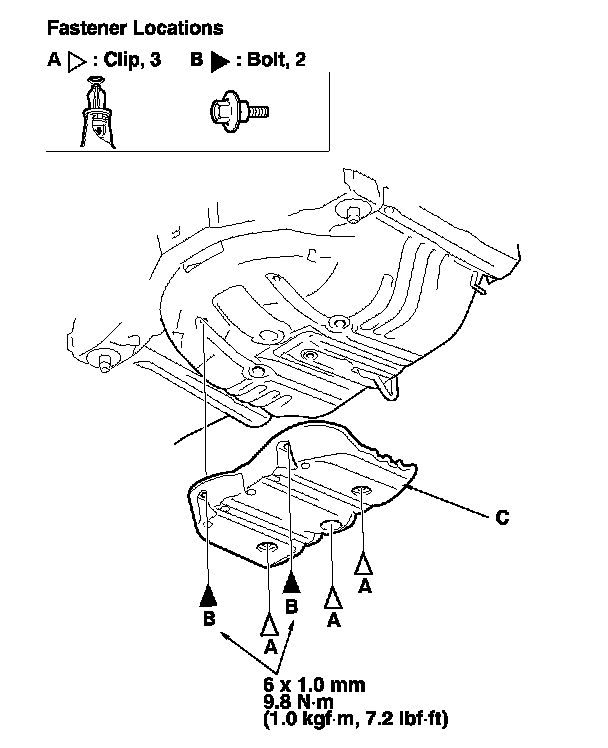

1. Remove the clips (A) and the bolts (B), then remove the rear undercarriage cover (C). Take care not to scratch the rear bumper.

2. Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
