DTC P0463: Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit High Voltage






General Description
The fuel level sensor (fuel gauge sending unit) is incorporated into the fuel pump and installed in the fuel tank. Using a built-in potentiometer and float, it converts the movement of the float to electrical signals that correspond to fuel level variations, and it measures the remaining fuel in the fuel tank. The fuel level, which is read by the gauge control module, is sent to the powertrain control module (PCM) via the controller area network (CAN). If the PCM detects a signal voltage from the fuel level sensor (fuel gauge sending unit) above a predetermined value for a set time or more, it detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

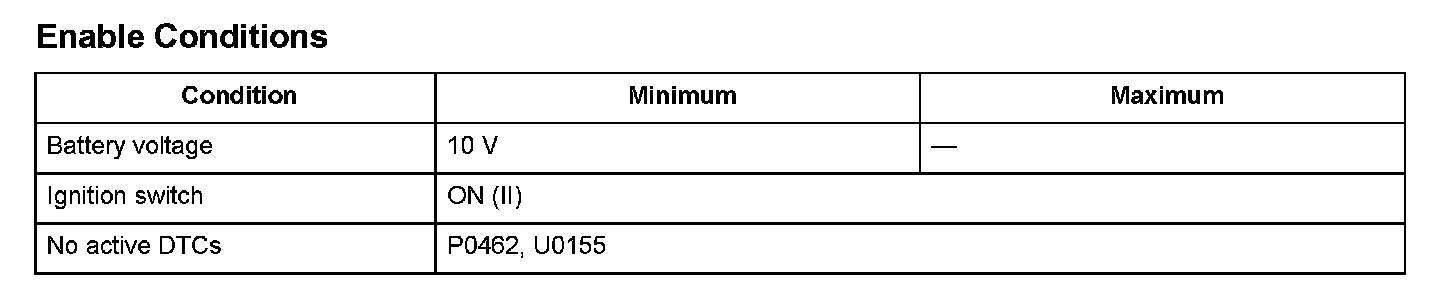

Enable Conditions






Malfunction Threshold
The fuel level sensor (fuel gauge sending unit) voltage is 4.92 V or more for at least 5 seconds.

Diagnosis Details
Conditions for illuminating the indicator When a malfunction is detected, the DTC and the freeze frame data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC
The DTC and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
