Manufacturer Code Charts: 65

VSA DTC Troubleshooting: 65

DTC 65: Brake Fluid Level

1. Check the brake fluid level.

Is the level correct?
YES - Go to step 2.

NO - Inspect the brake system for fluid leaks. If no leaks are found, check for worn brake pads.


2. Disconnect gauge control module connector B (28P) and brake fluid level switch 2P connector.

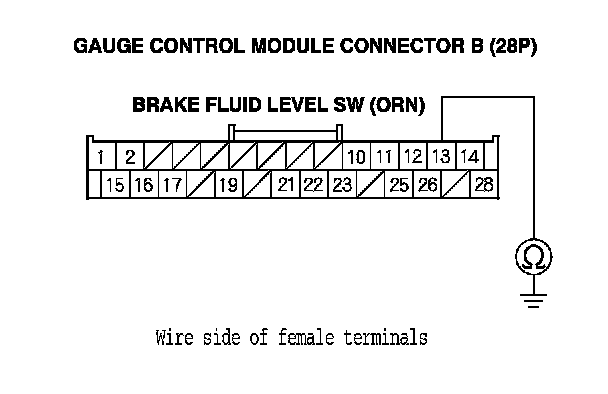

3. Check for continuity between gauge control module connector B (28P) terminal No. 13 and body ground.

Is there continuity?
YES - Repair short to body ground in the wire between gauge control module connector B and the brake fluid level switch.

NO - Go to step 4.






4. Check the brake fluid level switch. Testing and Inspection

Is the switch OK?
YES - Do the troubleshooting for the gauge control module. How to Troubleshoot the Gauges and Indicators

NO - Replace the brake fluid level switch.
