Interior Lights Circuit Diagram

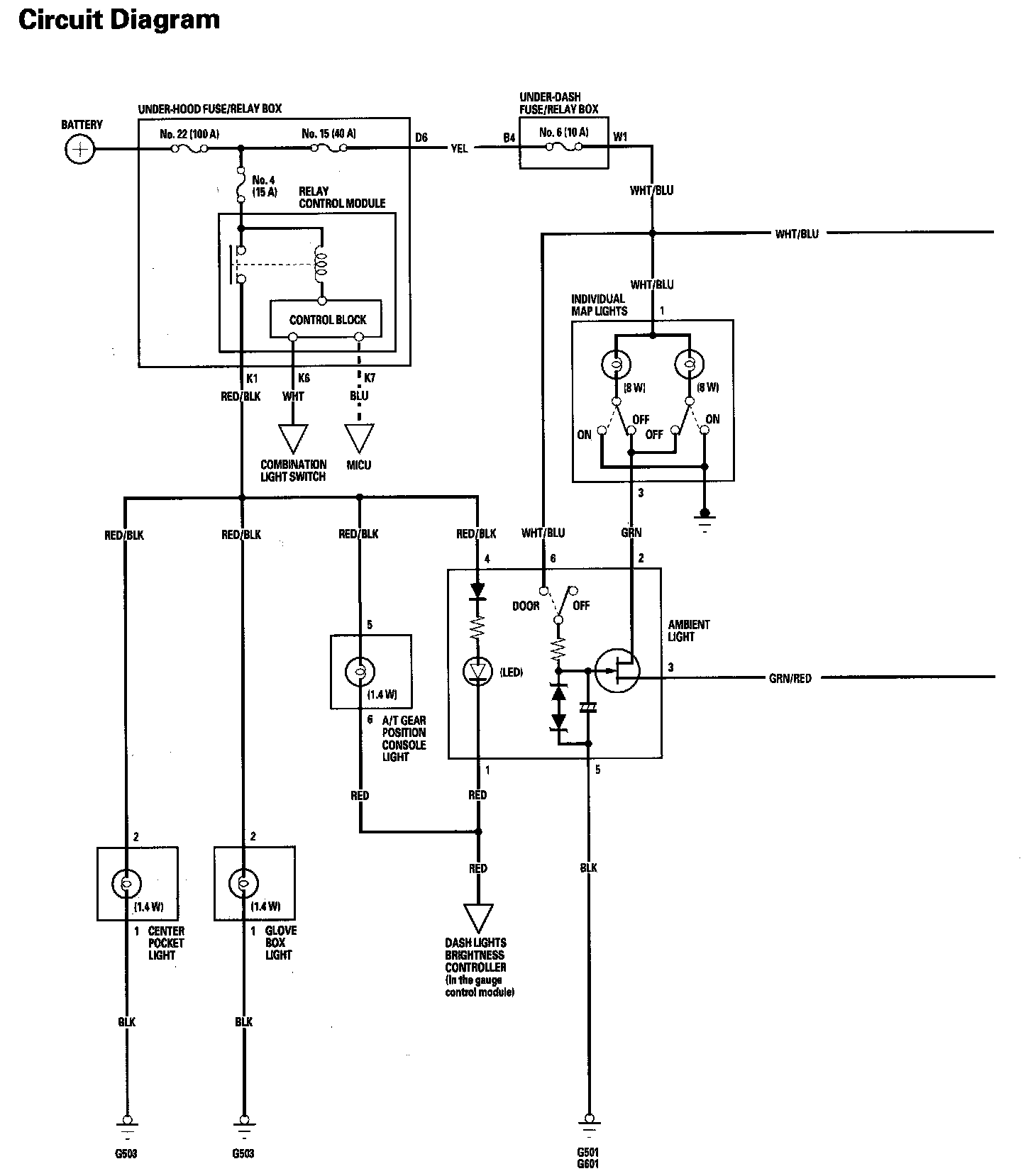

Interior Lights Circuit Diagram (Part 1):

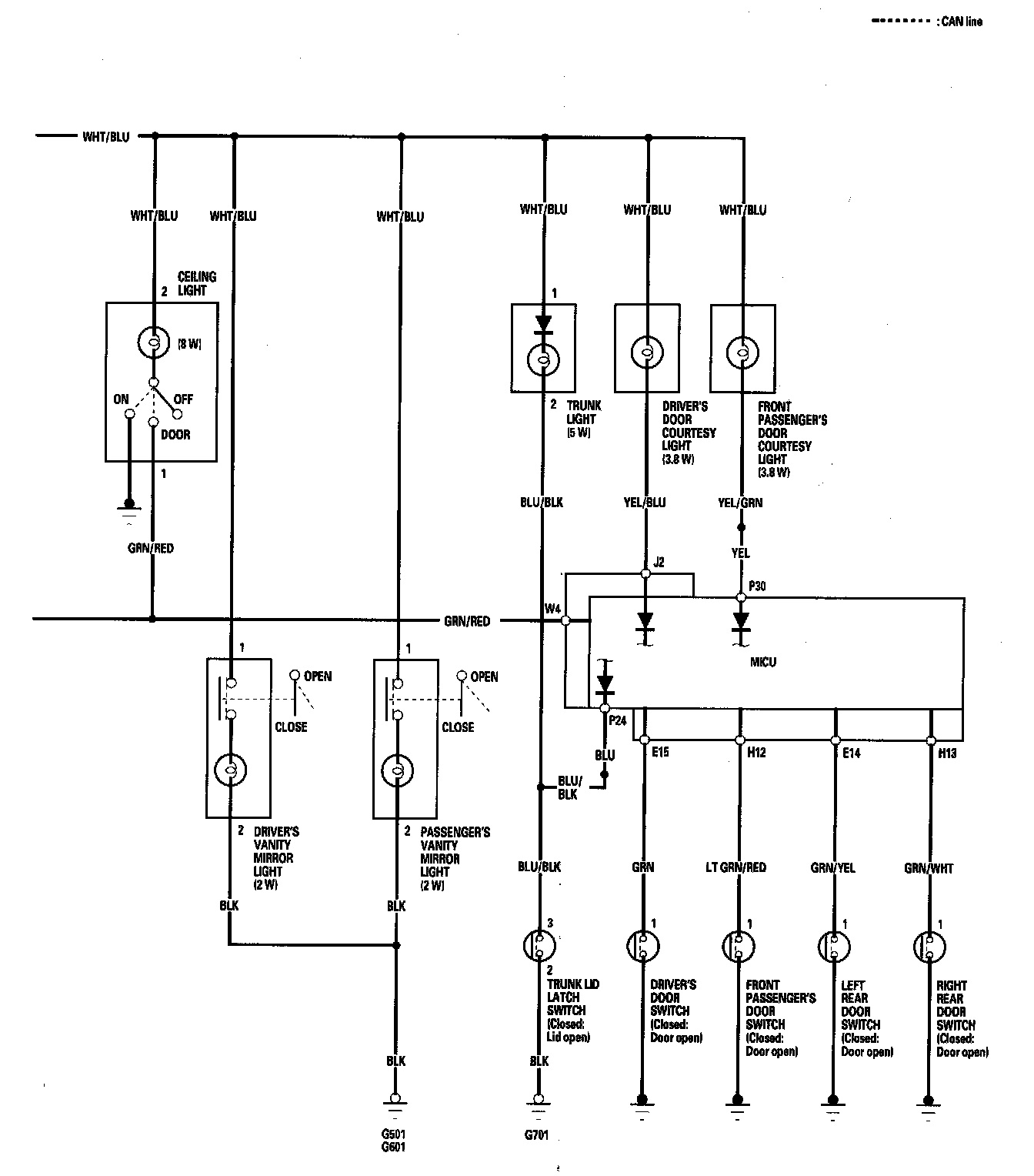

Interior Lights Circuit Diagram (Part 2):
