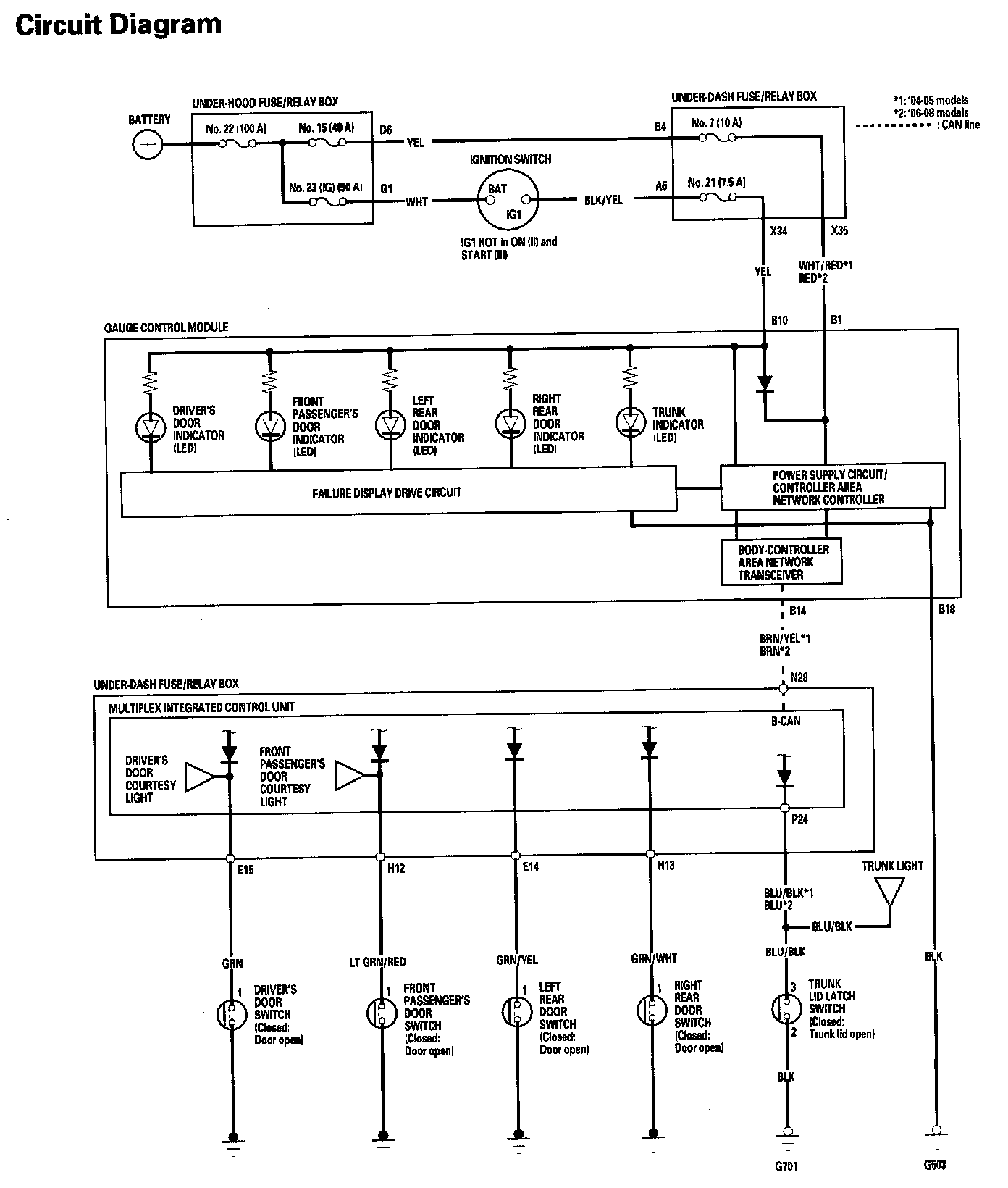

Safety Indicator System Circuit Diagram
Safety Indicator System Circuit Diagram
Safety Indicator Systems Circuit Diagram:
