Home >> Acura >> 2008 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 251-275 >> 269

View 251-275: 269

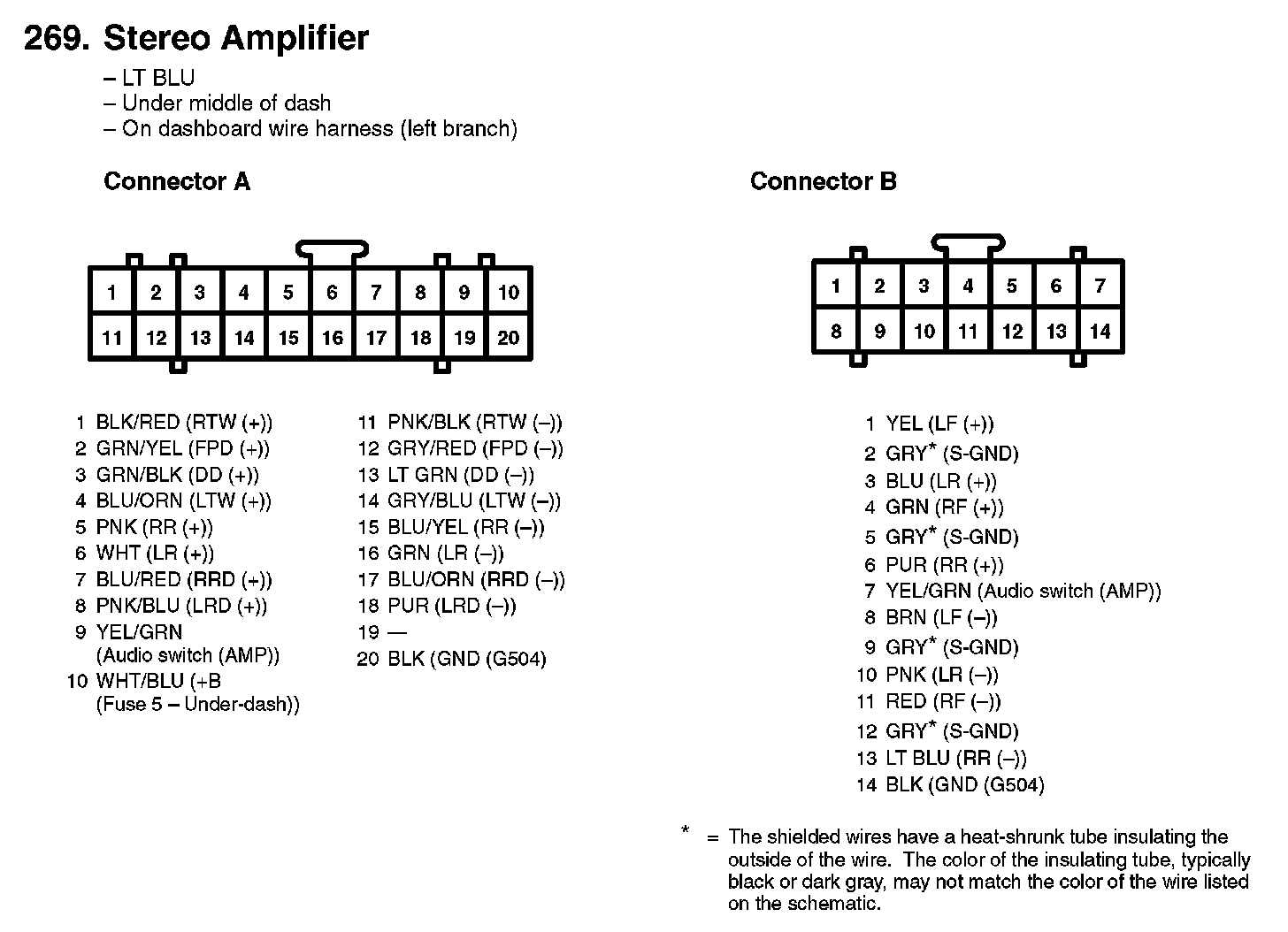

269. Stereo Amplifier:
