HandsFreeLink System Circuit Diagram

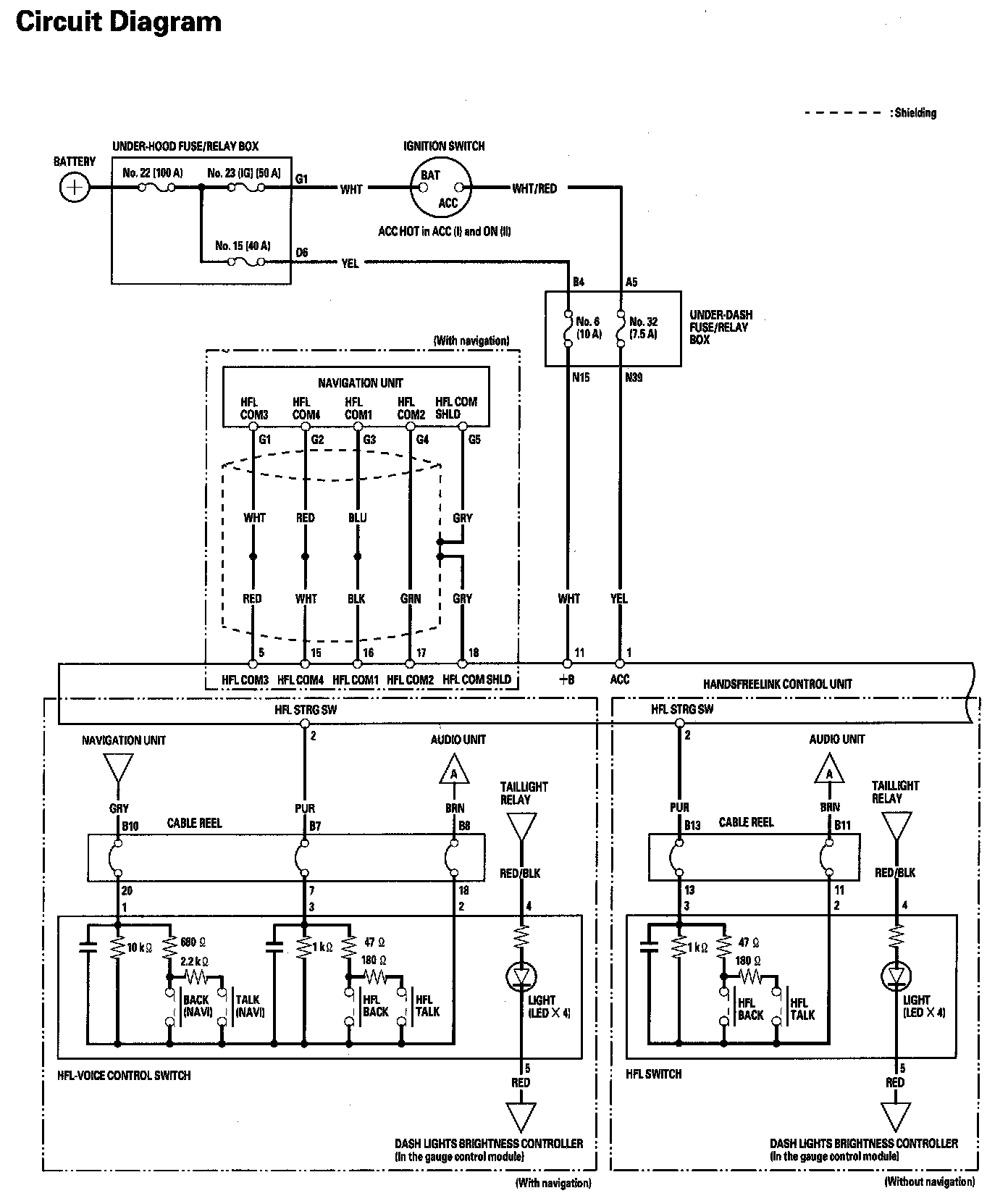

HandsFreeLink System Circuit Diagram (Part 1):

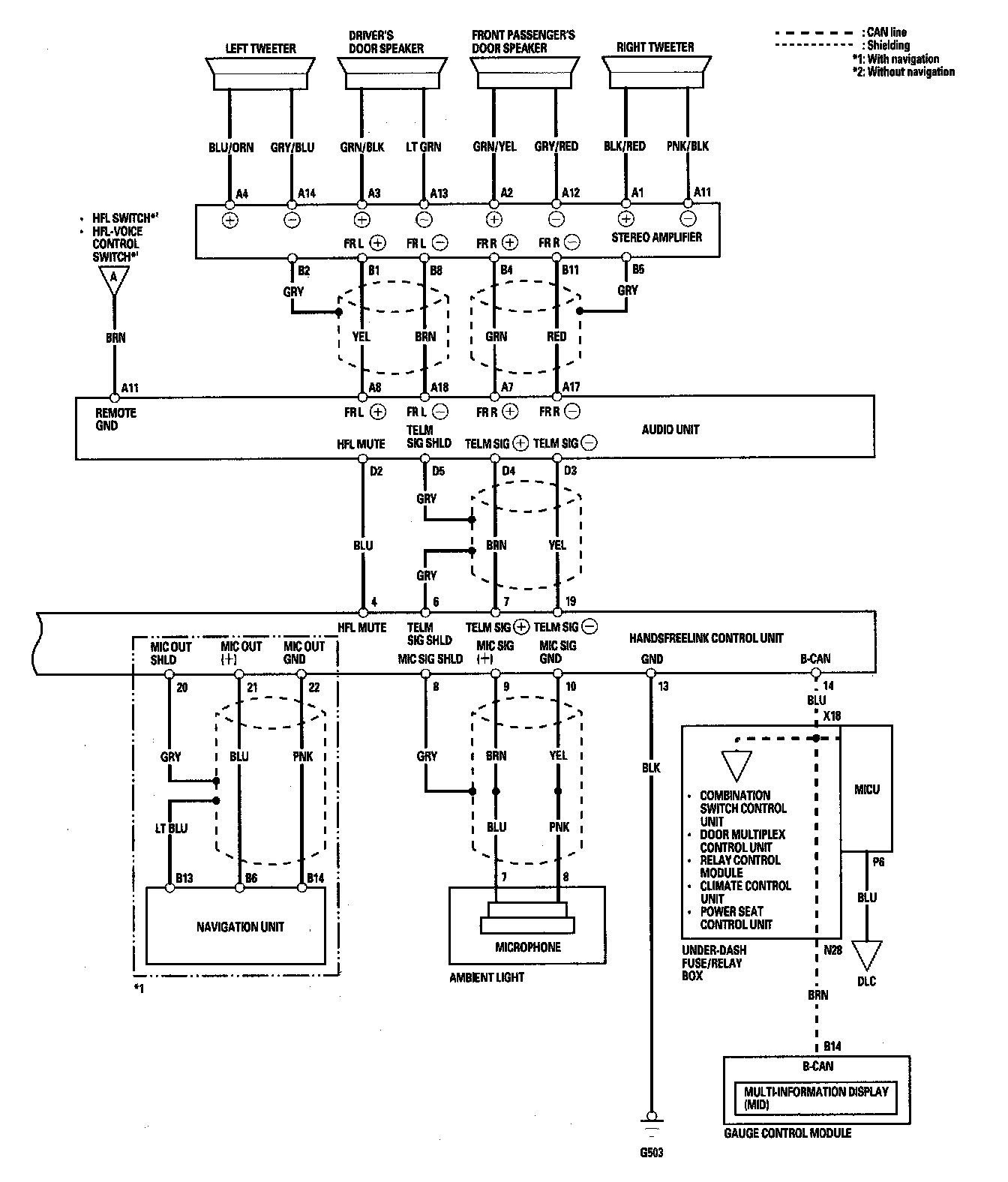

HandsFreeLink System Circuit Diagram (Part 2):
