Home >> Acura >> 2008 >> TL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 226-250 >> 235

View 226-250: 235

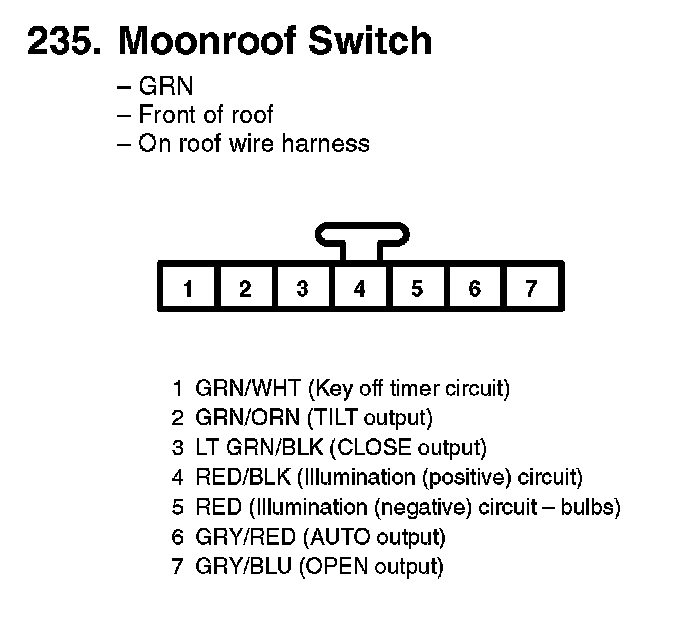

235. Moonroof Switch:
