Home >> Acura >> 2008 >> TL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 201-225 >> 222

View 201-225: 222

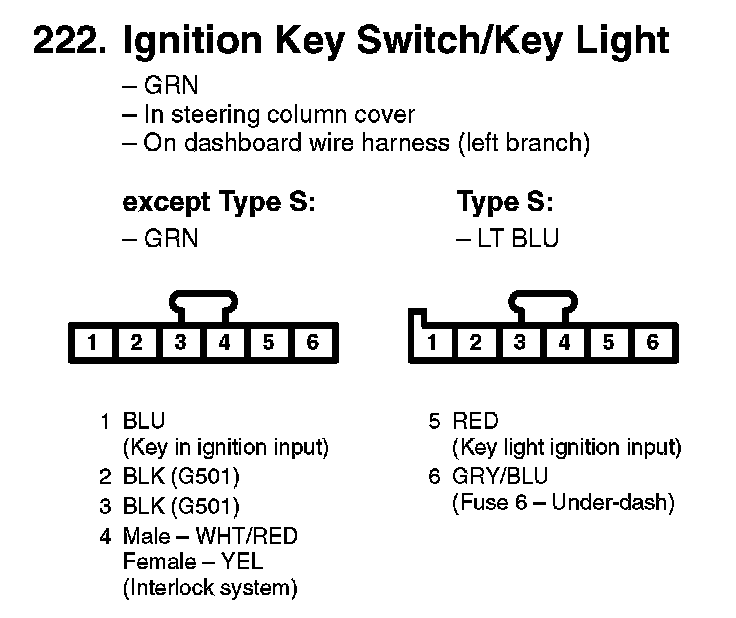

222. Ignition Key Switch/Key Light:
