Climate Control Circuit Diagram
Climate Control Circuit Diagram

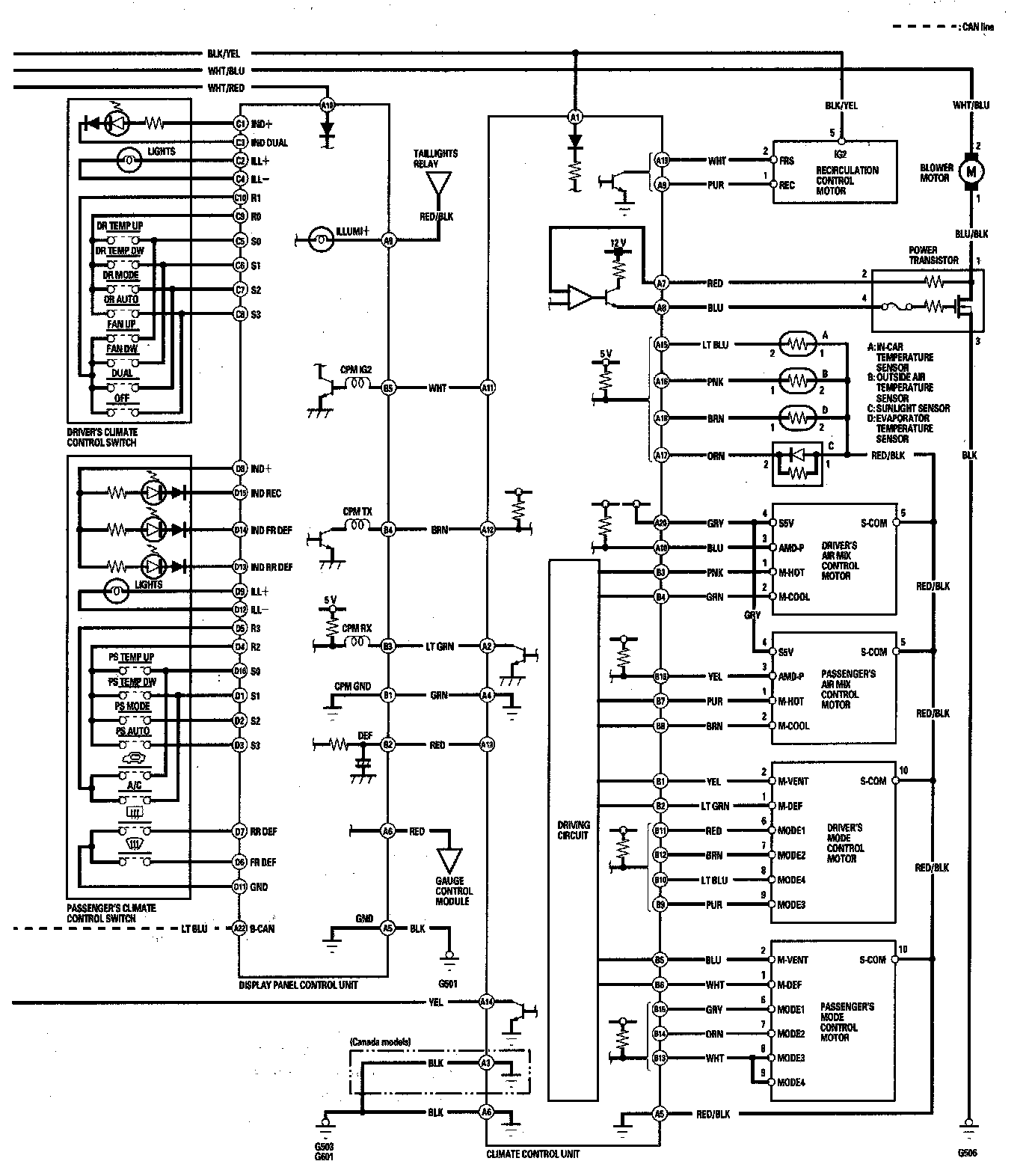

Climate Control Circuit Diagram Part 1:
Climate Control Circuit Diagram Part 2:
