Seat Temperature Element
>>

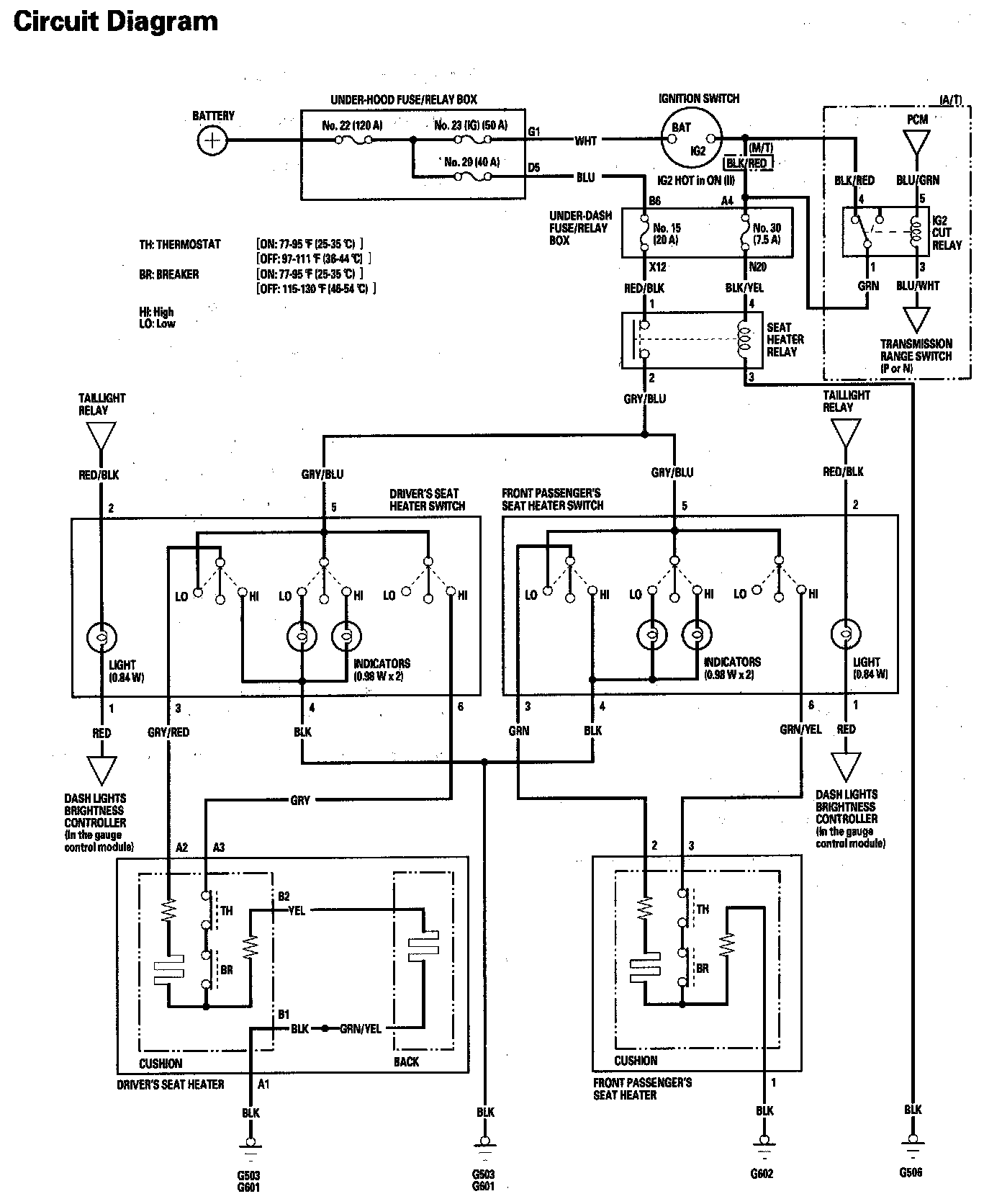

Seat Heaters Circuit Diagram
Seat Heaters Circuit Diagram
Seat Heaters Circuit Diagram:
