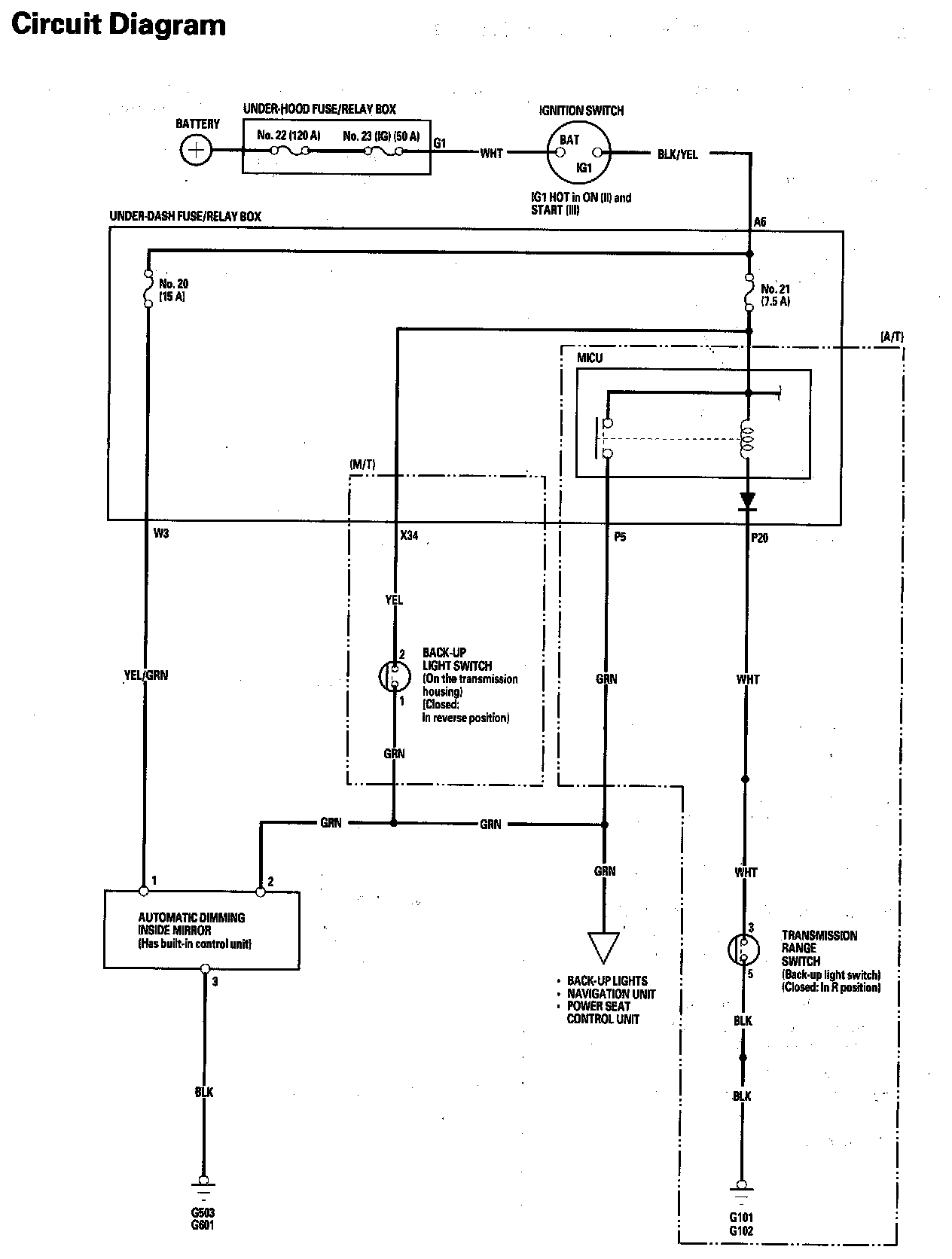

Automatic Dimming Inside Mirror Circuit Diagram
Automatic Dimming Inside Mirror Circuit Diagram
Automatic Dimming Inside Mirror Circuit Diagram:
