HandsFreeLink System Circuit Diagram
HandsFreeLink System Circuit Diagram

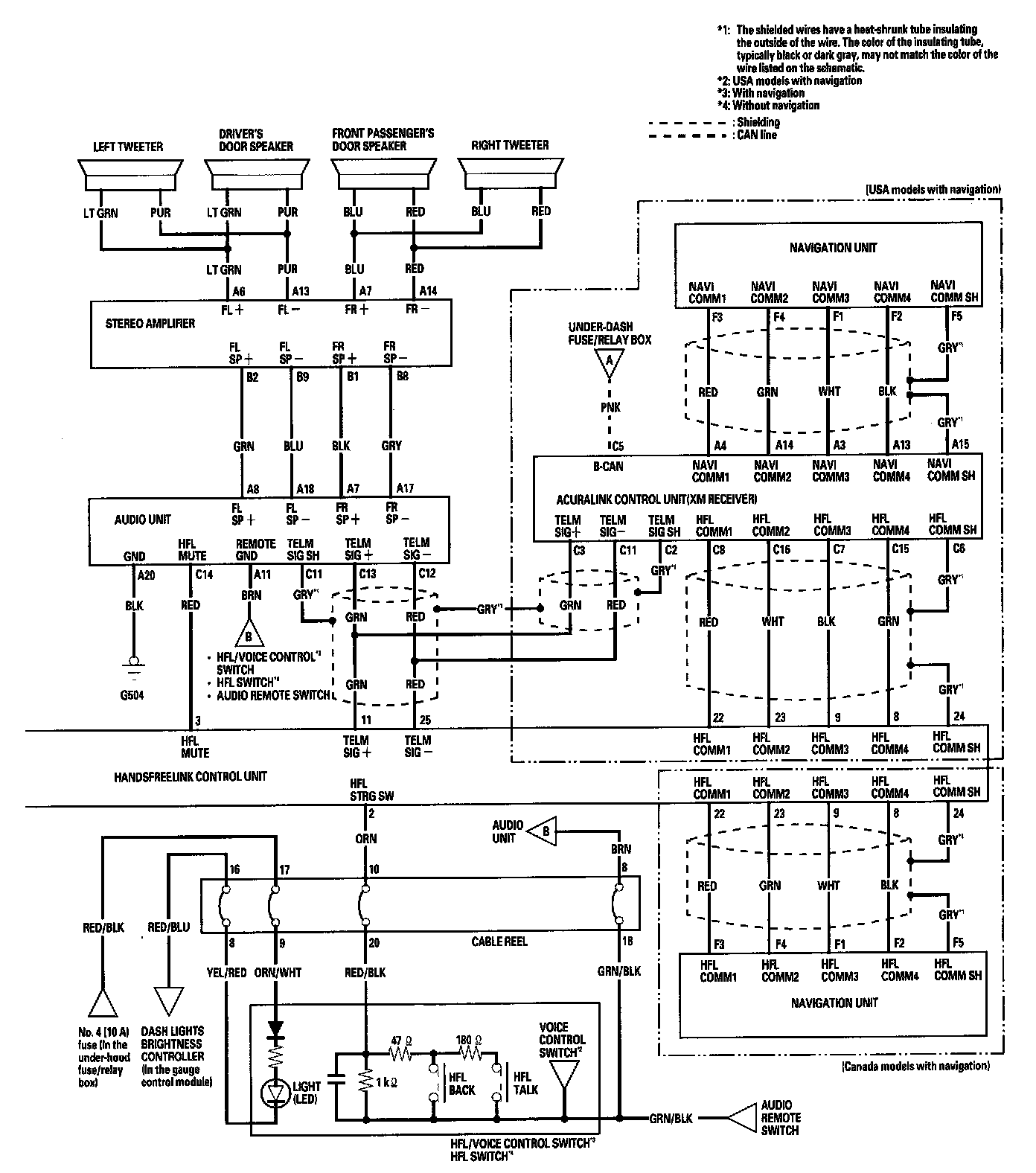

HandsFreeLink System Circuit Diagram Part 1:
HandsFreeLink System Circuit Diagram Part 2:
