Navigation System Circuit Diagram
Navigation System Circuit Diagram

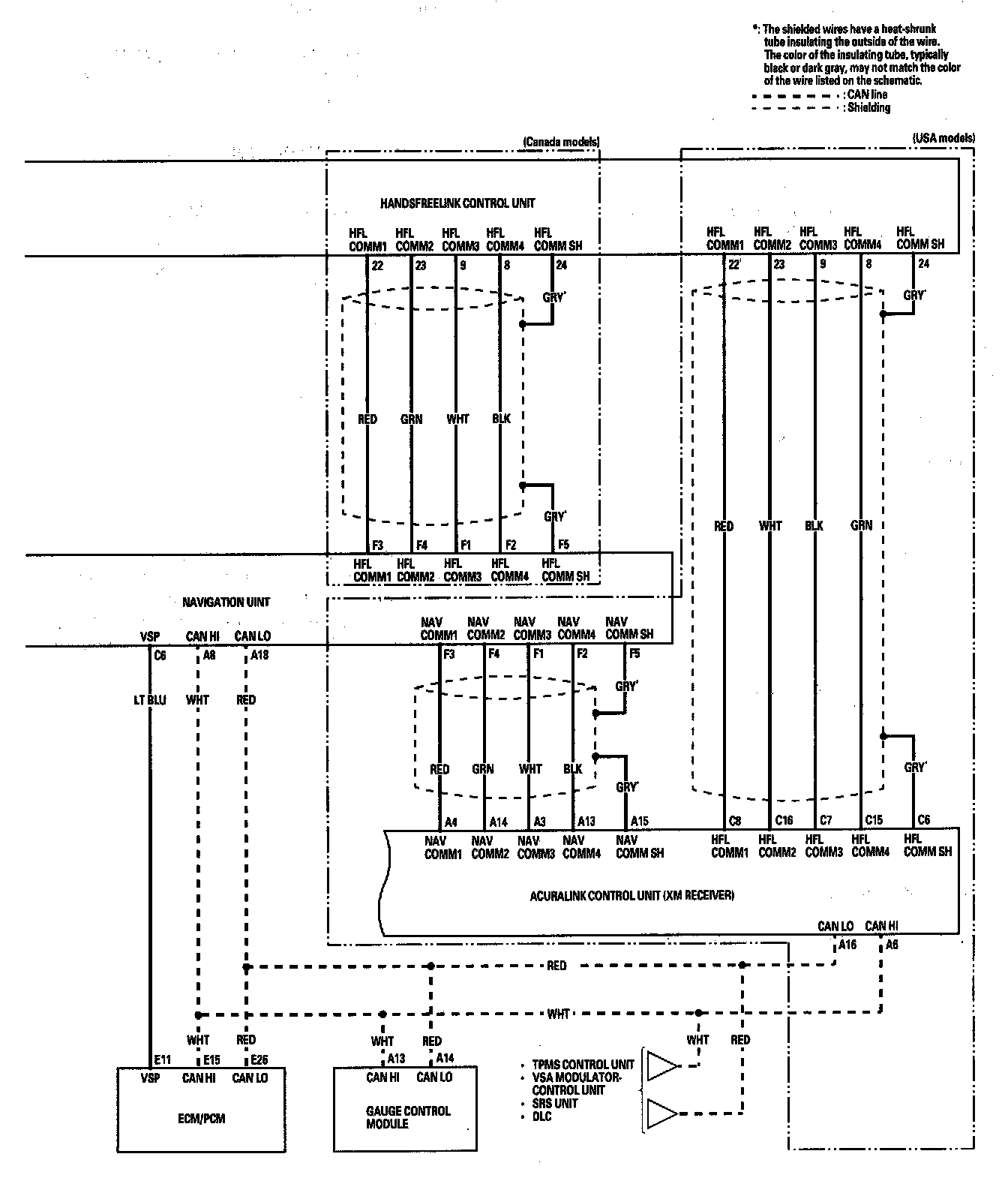

Navigation System Circuit Diagram Part 1:

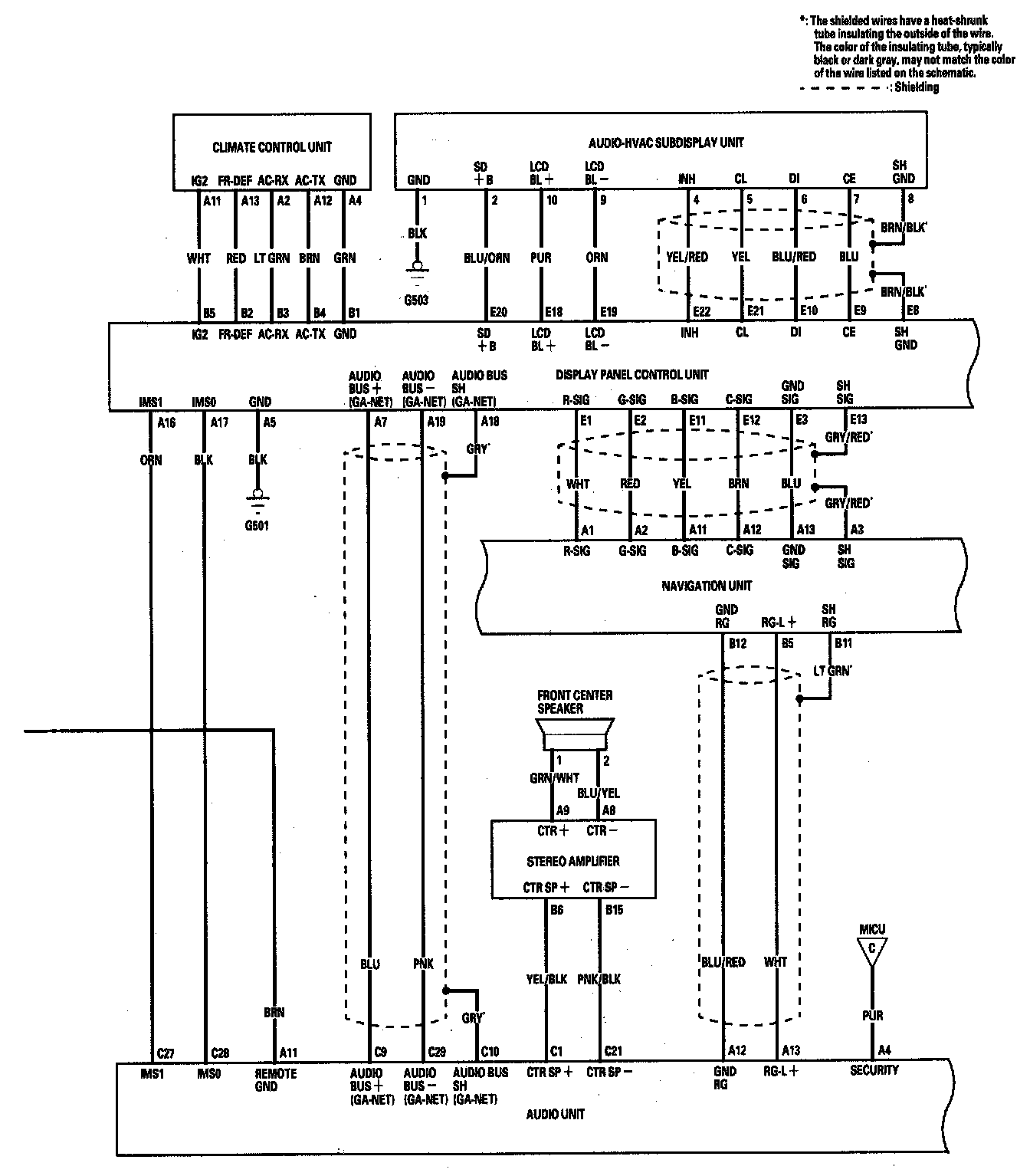

Navigation System Circuit Diagram Part 2:

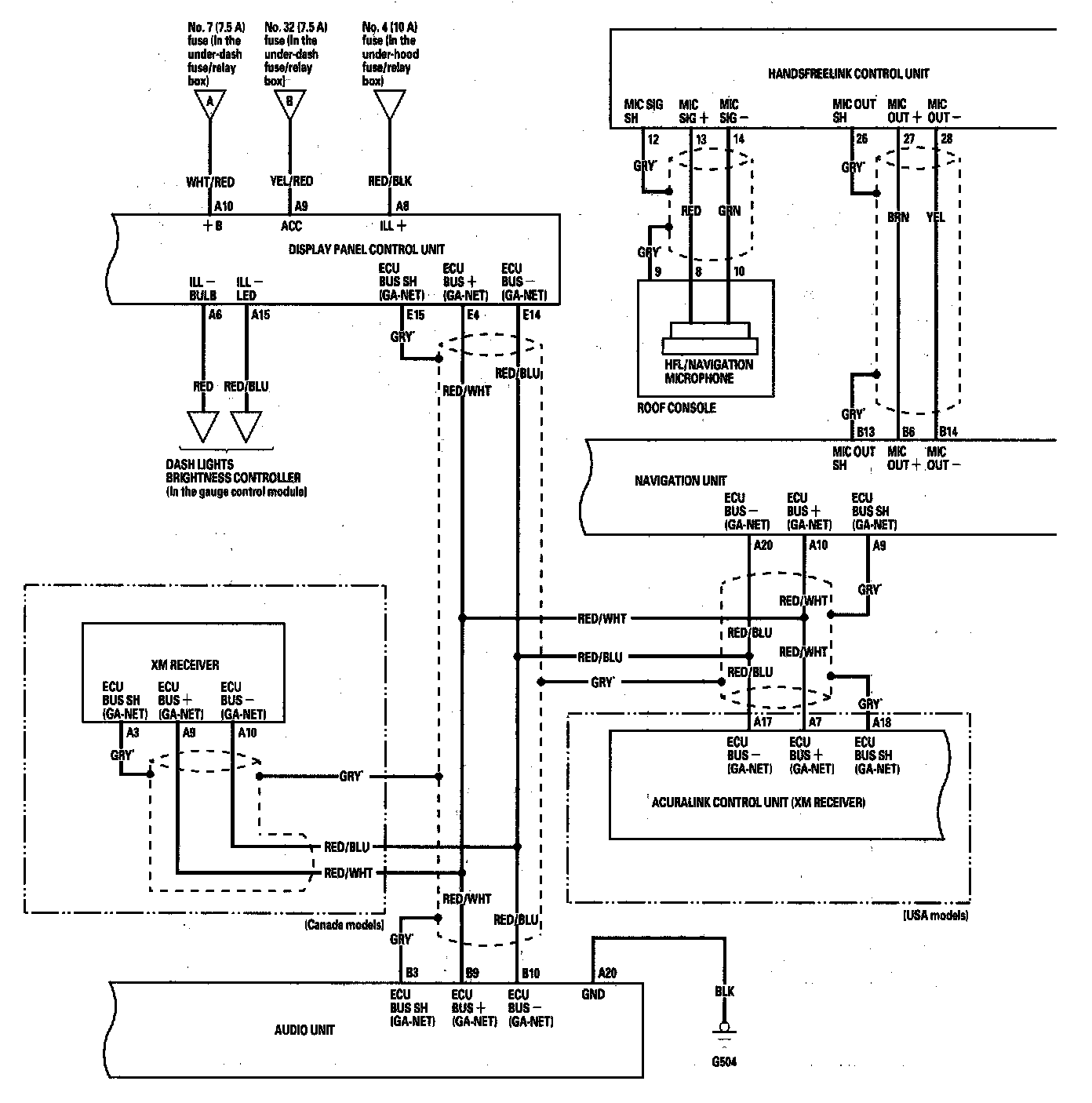

Navigation System Circuit Diagram Part 3:

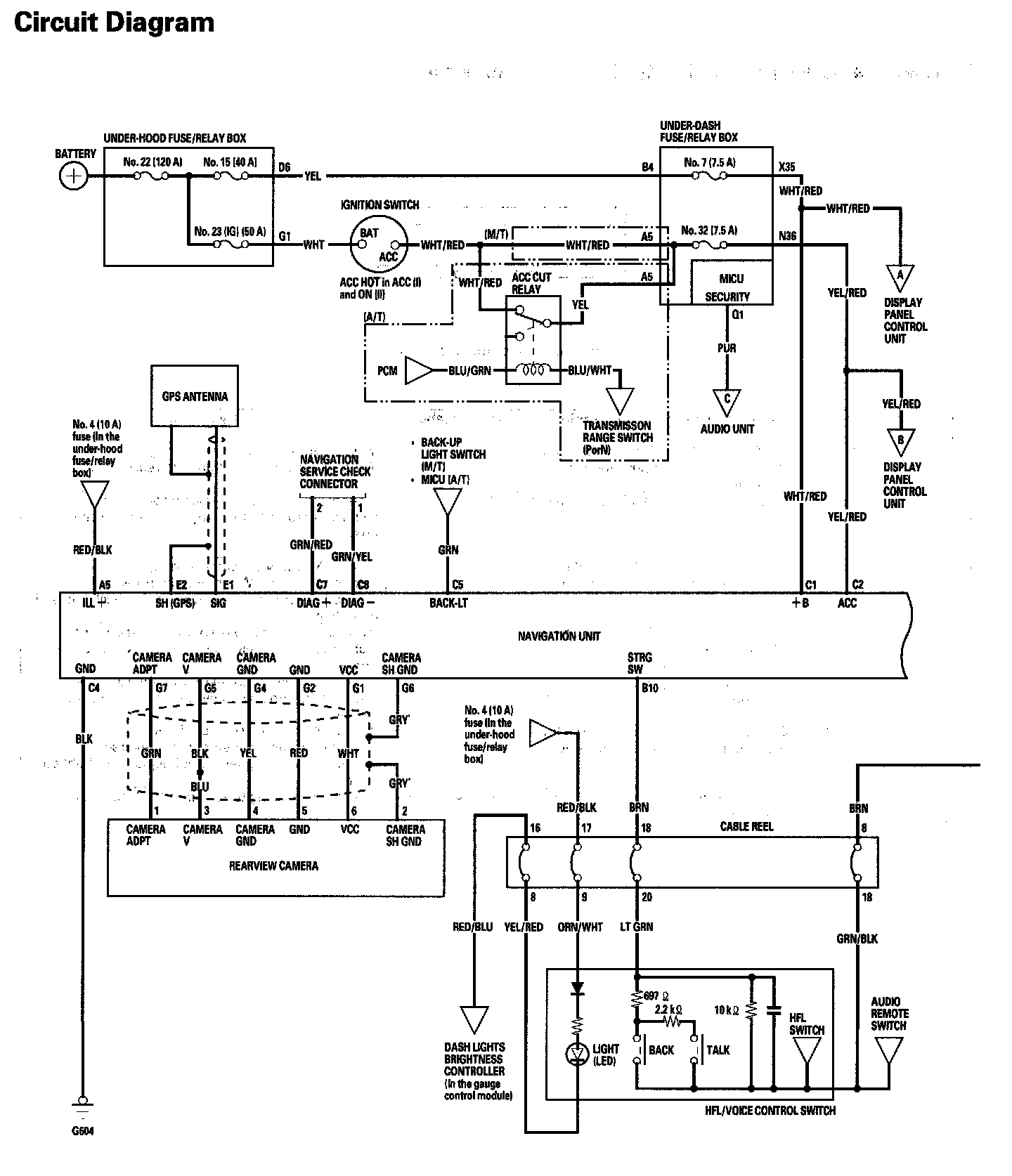

Navigation System Circuit Diagram Part 4:
