Transfer Cover Oil Seal Replacement

Transfer Cover Oil Seal Replacement

Special Tools Required
^ Driver 07749-0010000
^ Attachment, 65 mm 07JAD-SH30100

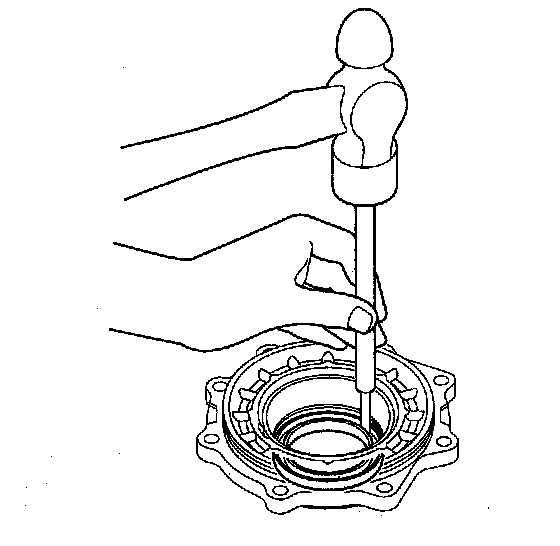

1. Remove the oil seal from the transfer cover.





2. Install the new oil seal (A) in the transfer cover (B) to a height (C) of 0 - 1 mm (0 - 0.04 in.) above the cover surface using the driver and the attachment (65 mm).
