Home >> Acura >> 2008 >> RL V6-3.5L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Steering Control Module >> Diagrams

Steering Control Module: Diagrams

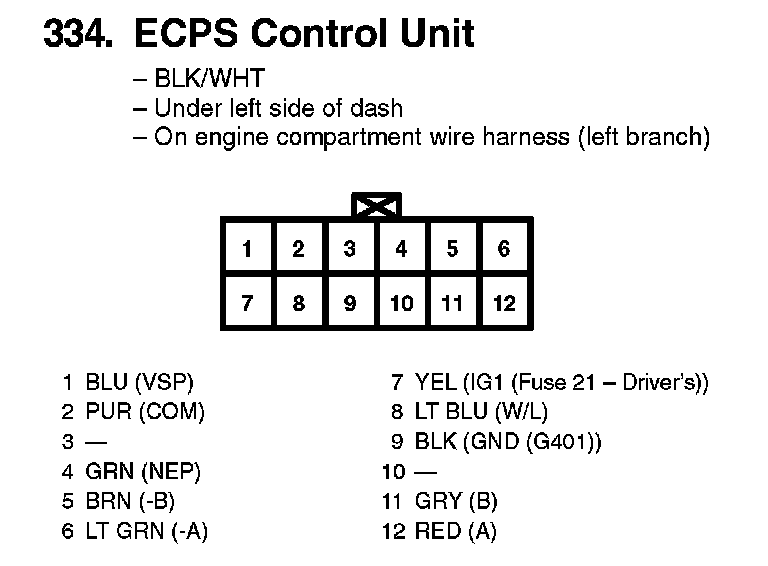

334. ECPS Control Unit:
