Home
>>
Acura
>>
2008
>>
RL V6-3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Throttle Actuator Control Module Subharness
Throttle Actuator Control Module Subharness

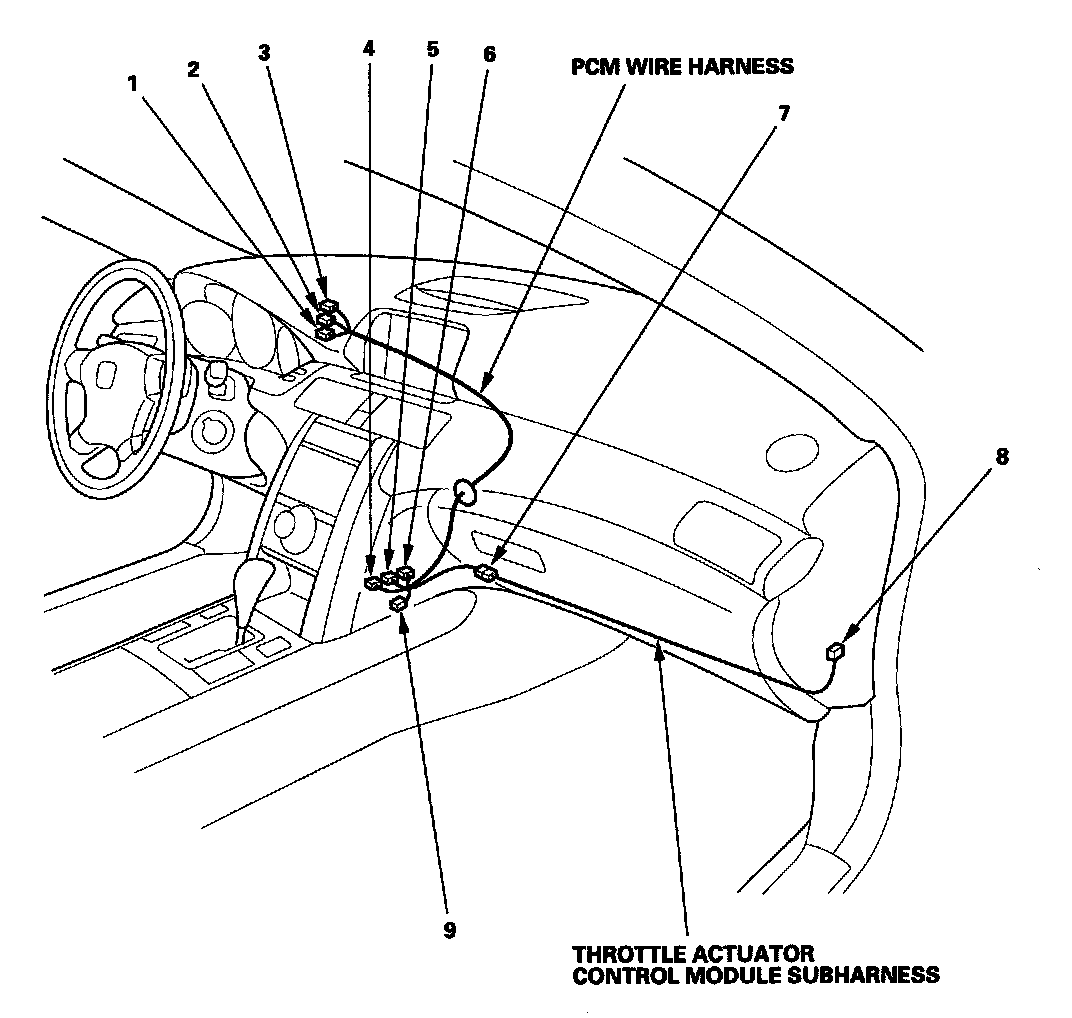

Harness Location View:

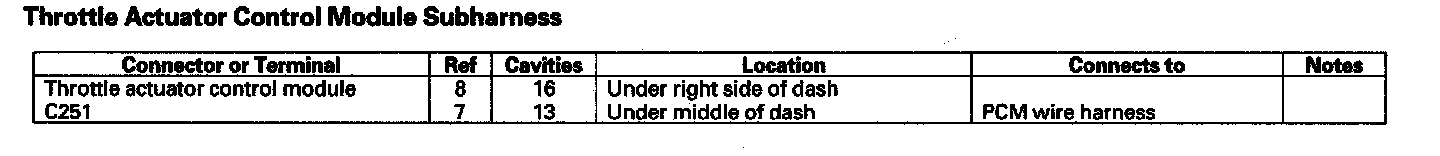

Throttle Actuator Control Module Subharness:
