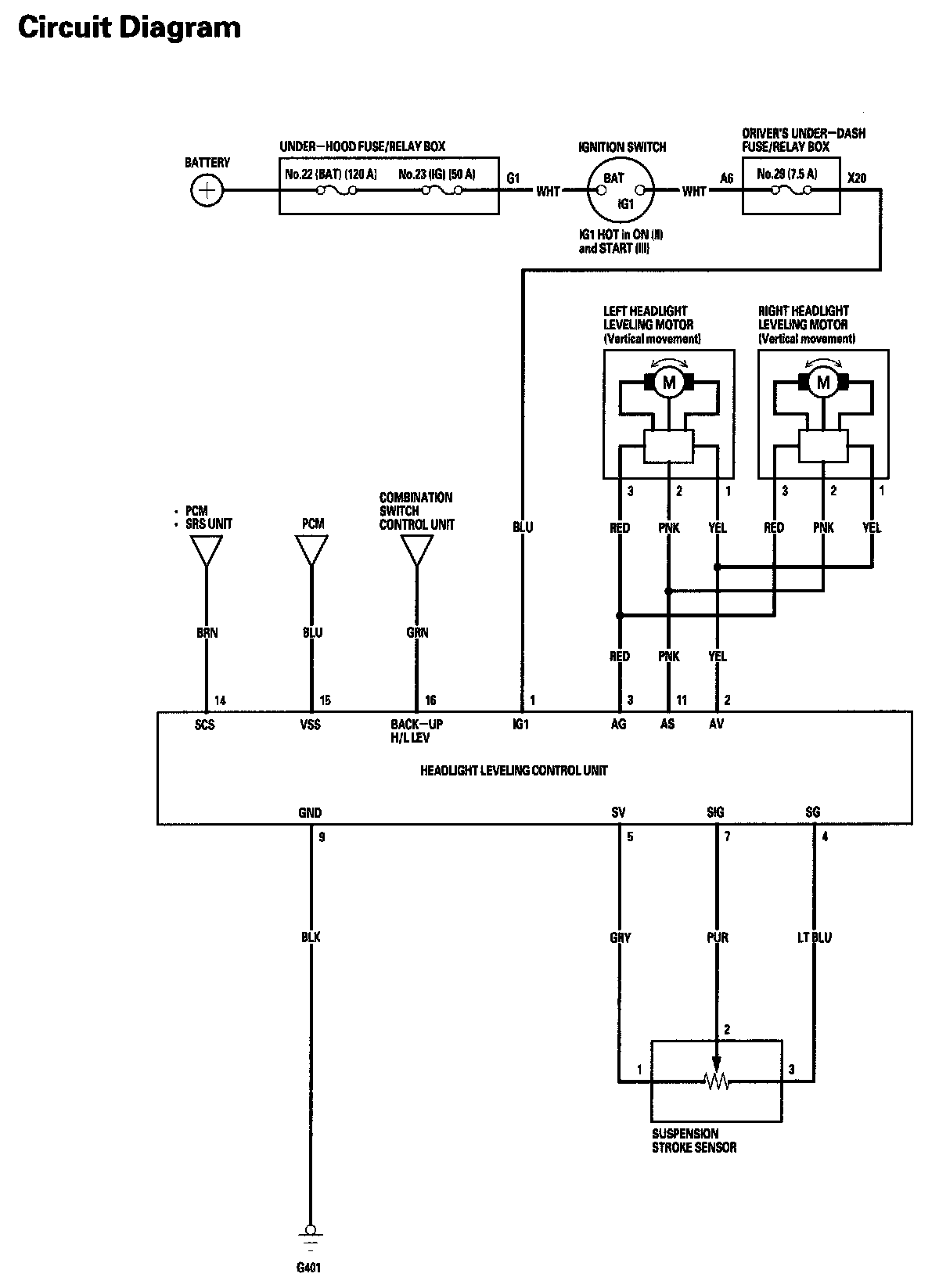

Headlight Leveling System Circuit Diagram
Headlight Leveling System Circuit Diagram
Headlight Leveling System Circuit Diagram:
