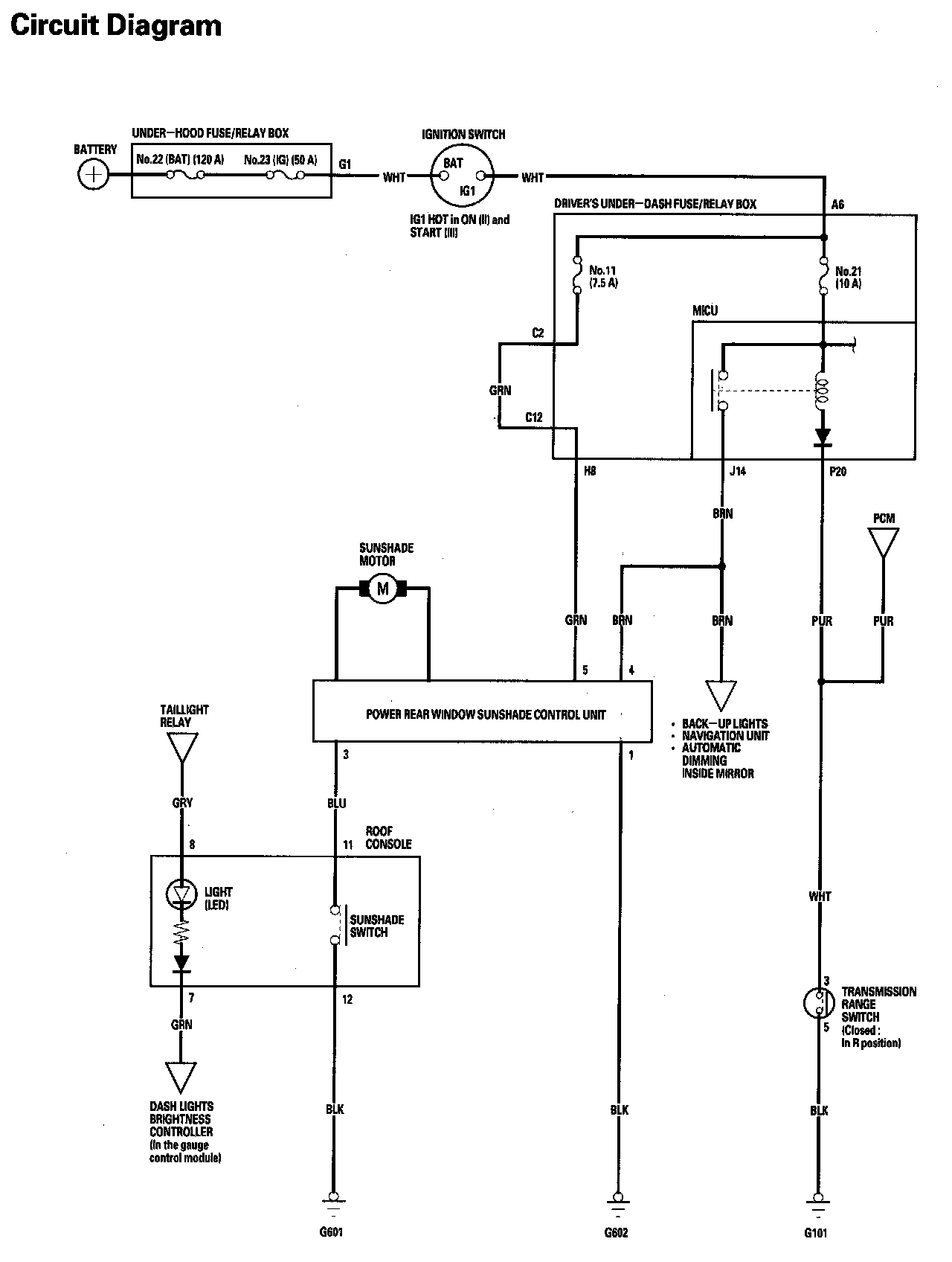

Power Rear Window Sunshade Circuit Diagram
Power Rear Window Sunshade Circuit Diagram
Power Rear Window Sunshade Circuit Diagram:
