AcuraLink Circuit Diagram

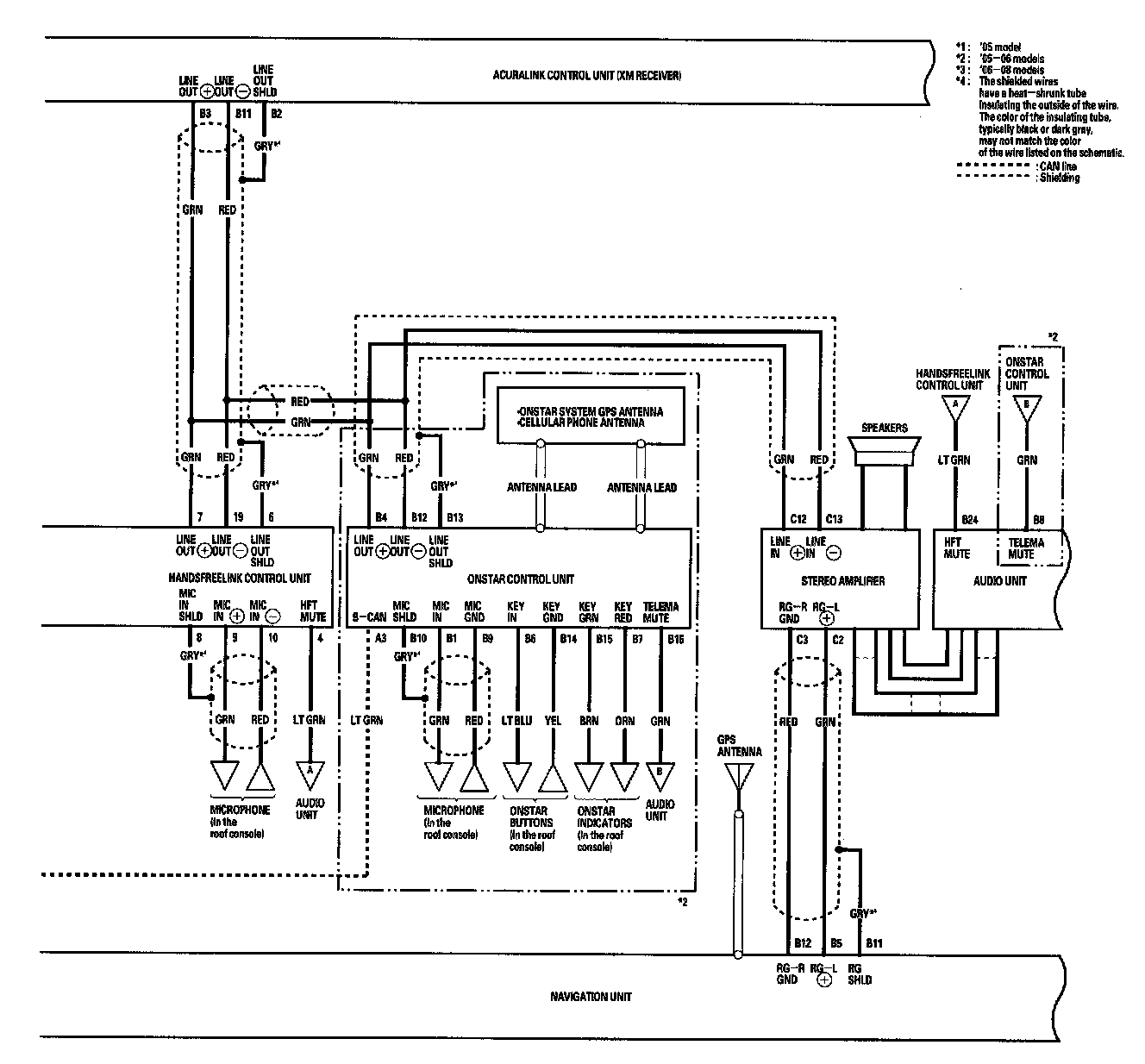

AcuraLink Circuit Diagram Part 1:

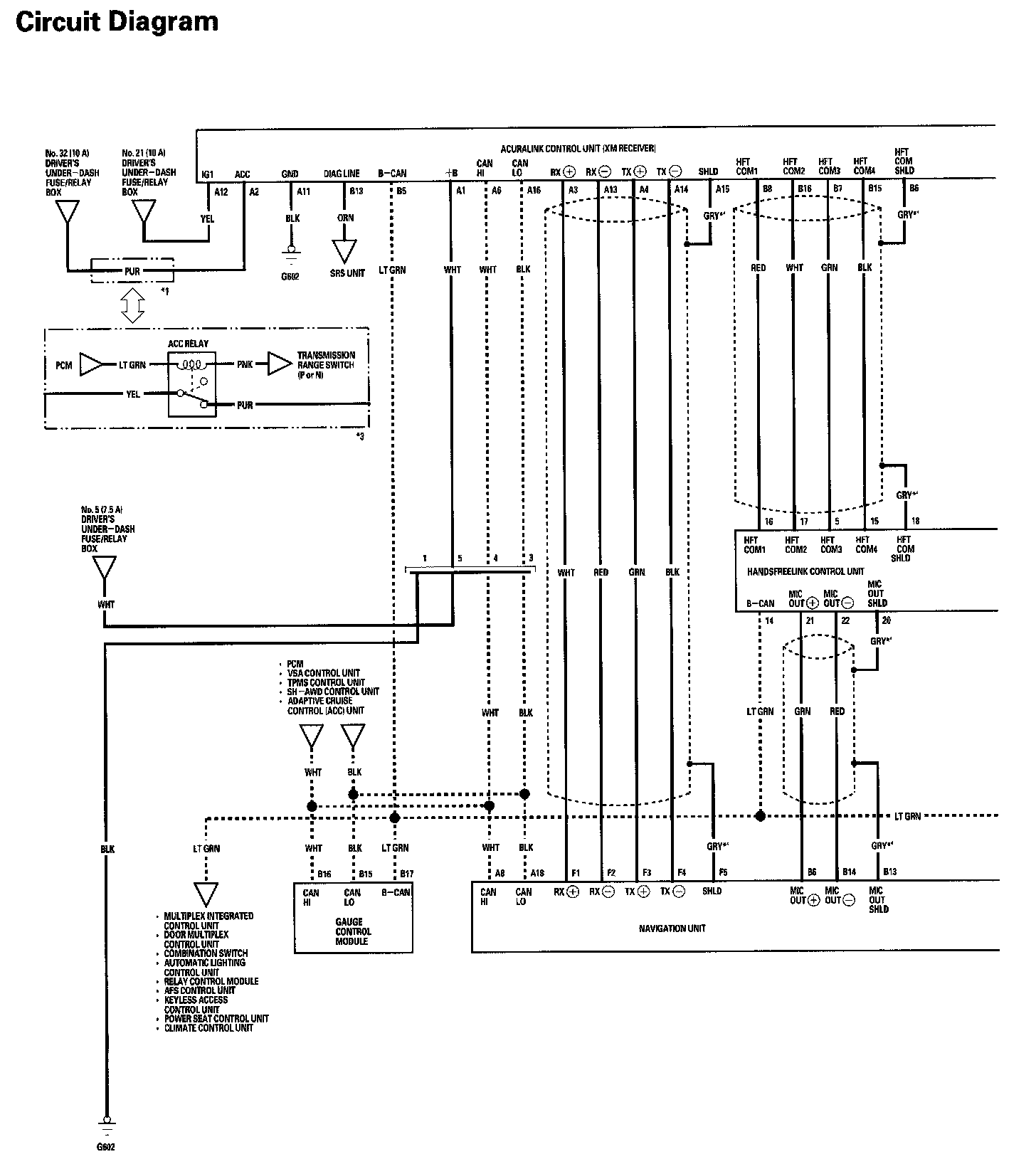

AcuraLink Circuit Diagram Part 2:

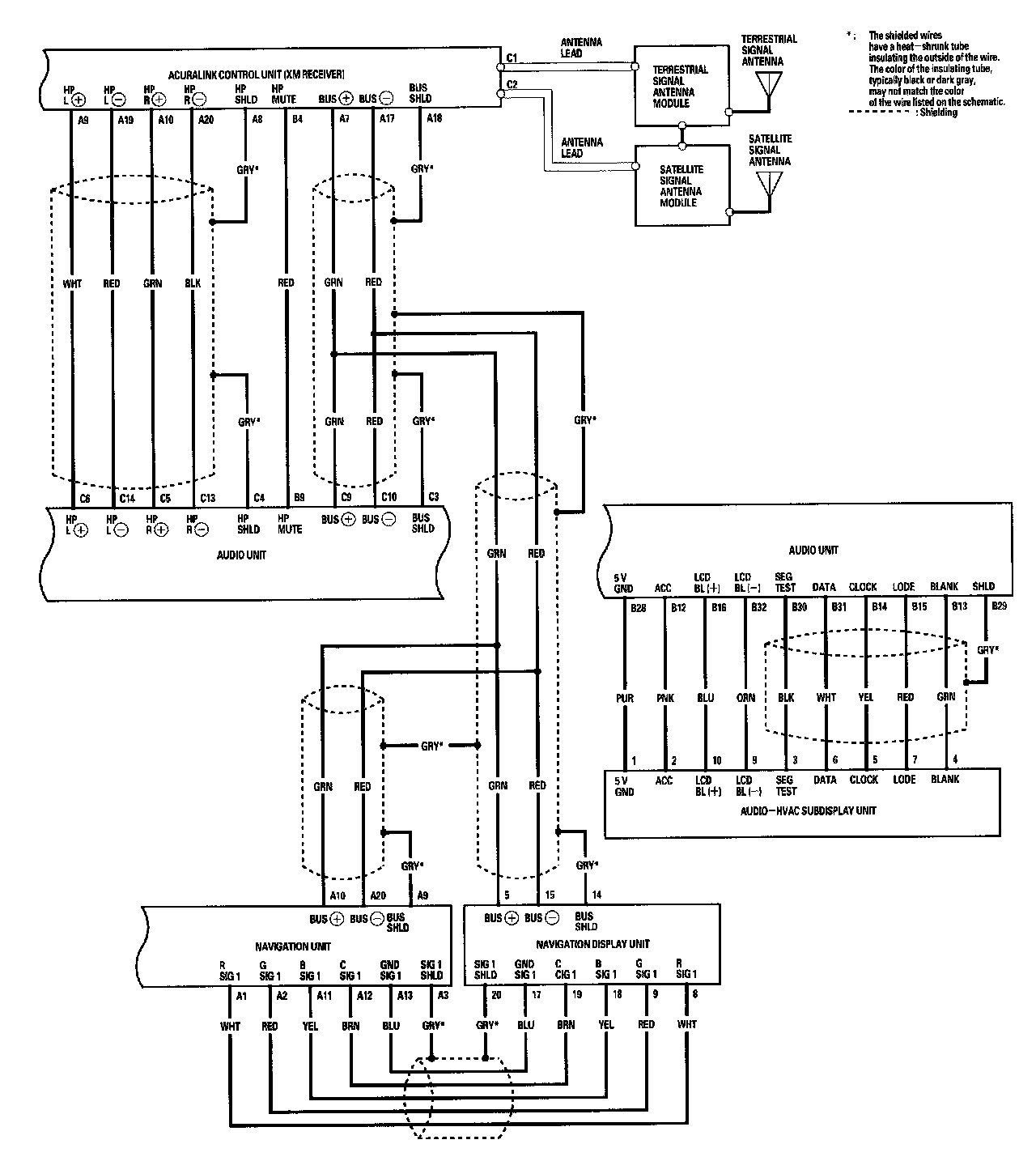

AcuraLink Circuit Diagram Part 3:
