Collision Mitigation Brake System (CMBS) Circuit Diagram

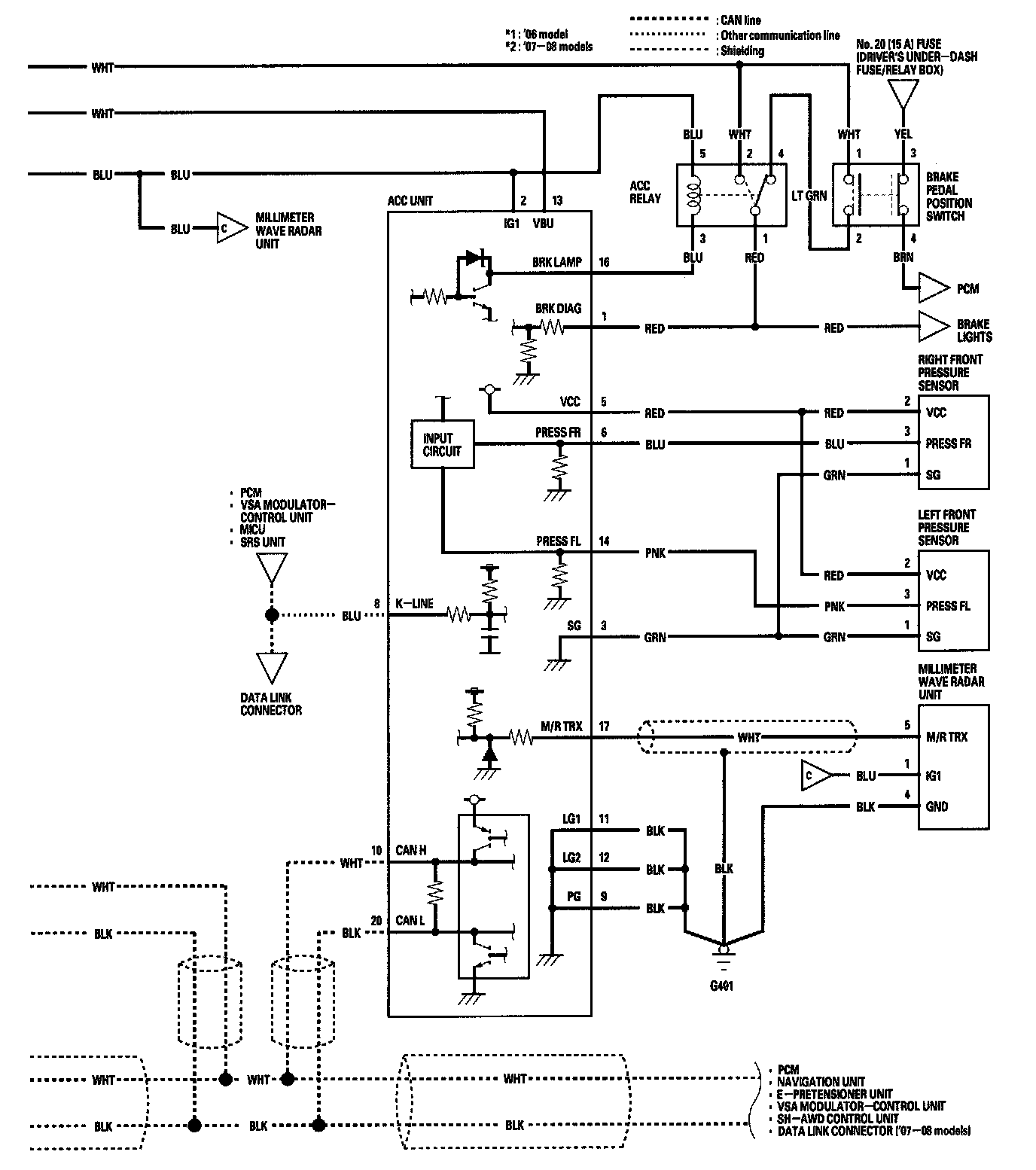

Collision Mitigation Brake System (CMBS) Circuit Diagram Part 1:
Collision Mitigation Brake System (CMBS) Circuit Diagram Part 2:
